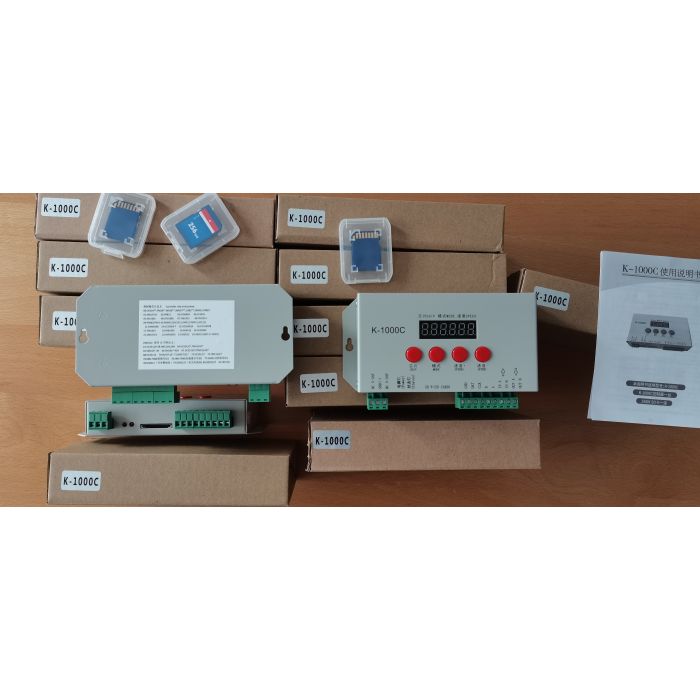

K-1000C programmable SPI digital master LED controller
- Buy 100 for £20.14 each and save 6%
We are the distributor of brand K-1000C, genuine version, not cheap phony type
K-1000C controller is default, K-1000C with RF remote is optional
Click here to download software LedEdit-K 2019
Click here to download old version LedEdit 2013
Click here to download old version LedEdit 2012
Click here to download software LedPlayer-K 2019
Click here to download old version LedPlayer 2014
Features:
1. 256 gray, Gamma correction processing software.
2. Support the rules and special-shaped handle.
3. Controller, a port output, may bring 1024/2048 light.
4. Off-line control, play back content stored in the SD card
5. K-1000C store a maximum of 16 documents
Note: The model K-1000C with one port output, When it control 512 pixels the speed can reach 30fps, more than 512 pixels, the frame speed will be slow down automatically
Connection diagram:
|
7.5V-24V |
DC power input, to provide two sets of power input, select a group can be. |
|
5V |
Power Ground. |
|
GND |
Error indicator |
|
ERROR |
Power LED |
|
POWER |
SD card slot |
|
SD CARD |
Output CLK |
|
CLK |
Output DATA |
|
DAT |
Signal Ground |
|
GND |
|
|
B |
Compatible with DMX signal, differential A, and differential B |
|
GND |
Signal Ground |
Regulatory function button:
|
SET |
Save Settings to save current settings file and the playback speed |
|
MODE |
Switch File |
|
SPEED+ |
Speed up the playback speed |
|
SPEED- |
Slow down the playback speed |
System architecture diagram
Specific parameters
Memory Card:
. Type: SD Card
. Capacity: 128MB-2GB
. File Format: FAT file format
. Store files: *.led
Physical parameters:
. Weight:0.2kg
. Size:122mm*67mm*25mm
. Temperature :-40-85 celsius
. Volgate: DC 5V / DC 7.5-24V
. Power:3W
Note:
To copy files to SD card, you must first format to the SD card, pay attention to is that each copy must be formatted before.
SD card must be formatted as "FAT" format.
Supported IC
TM1803, TM1804, TM1809, TM1812
TM1829
TM1913
TM1914
UCS1903, UCS1903B, UCS1909, UCS1912
UCS2903, UCS2909, UCS2912
UCS3903
UCS6909, UCS6912, UCS7009, UCS5903
UCS8903
UCS512
WS2811
WS2821
P9813
P9823
LPD1886
GW6202
GW6201, GW6202B, GW6204
GW6203
GW623X
GW624X
TA9909
MBI6021
INK1003
LX1003
LX2003, LX2006
TLS3100
DMX
SM16711
SM16726
SM16716
LPD6803
LPD8806
LPD1882
LPD6812
LPD6813
TM1903, TM1904, TM1909, TM1912
DMX-Monochrome
WS2801, WS2803
D7710
QC1109
TLS3001, TLS3008
APA102
MY9221
BS0815
BS0825
BS0901
HL32
HL1809
HL2803
RGB
Monochrome
XB001
XB002
T series such as T-300K, T-780K, T-800K works with 2019 LedEdit-K operating manual
2019 LedPlayer-K operating manual
LedEdit works with AutoCAD
LedEdit 2012 operating manual
