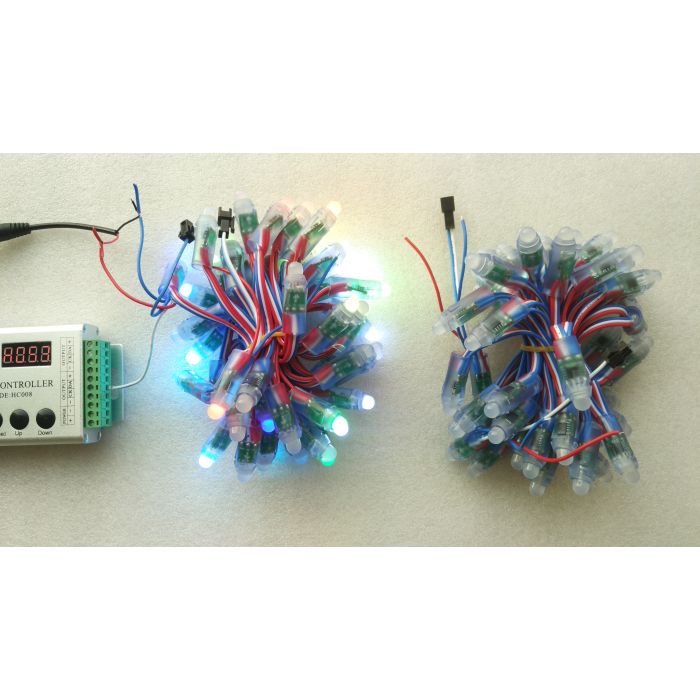

5V IP68 waterproof 50 nodes WS2811 RGB LED pixel module string
- Buy 100 for £6.58 each and save 8%
- Buy 1000 for £6.34 each and save 11%
256 levels gray scale, 50 pieces a string, Epistar RGB LED, excellent performance
DC 5V working voltage, made in Shenzhen of China, direct from factory, good price
Kutop is LED light factory, we can supply customised LED light products, for more details, please contact us.
IC type: WS2811
IC quantity: 50 nodes
Gray scale: 256 levels
LED type: 8mm full RGB strawhat LED, brand Epistar LED, excellent performance
Dimension: 12x14mm
RGB LED quantity: 50 nodes
Viewing angle: 120 degrees
Working voltage: DC 5V
Working current: 60 mA
Working consumption: 0.3 watt
Working temperature: 20~60℃
RGB pixels are digitally-controllable lights which you can set to any color or animation
Each RGB LED and controller chip is molded into a 'dot' of silicone, the dots are waterproof and rugged, there are four flanges molded in so that you can 'push' them into a 12mm drill hole in any material up to 1.5mm/0.06" thick.
The pixels are connected by a 3-conductor cable. Red is +5V, Data is shifted down from one pixel to the next so that you can easily cut the strand or attach more onto the end.
Each dot is digitally controlled, with an internal 5-bit PWM LED driver (15-bit color for 32,768 different shades), the pixels must be clocked by a microcontroller.
The pixels use 8mm diffused RGB LEDs with brightness of about 300 mcd per individual r/g/b LED.
This digital IC LED pixel strip works with SD controller
Programable by Software
Individually Control
Conformal Coating, PVC glue protection
IP66 IP68 waterproof protection rate
Easy installation (punching 12mm punch through-hole on metal panel)
50 pieces per string
Meets the general lighting, outdoor advertising, Christmas decoration
This digital WS2811 IC RGB LED pixel light can work with T-1000S SD card controller:
