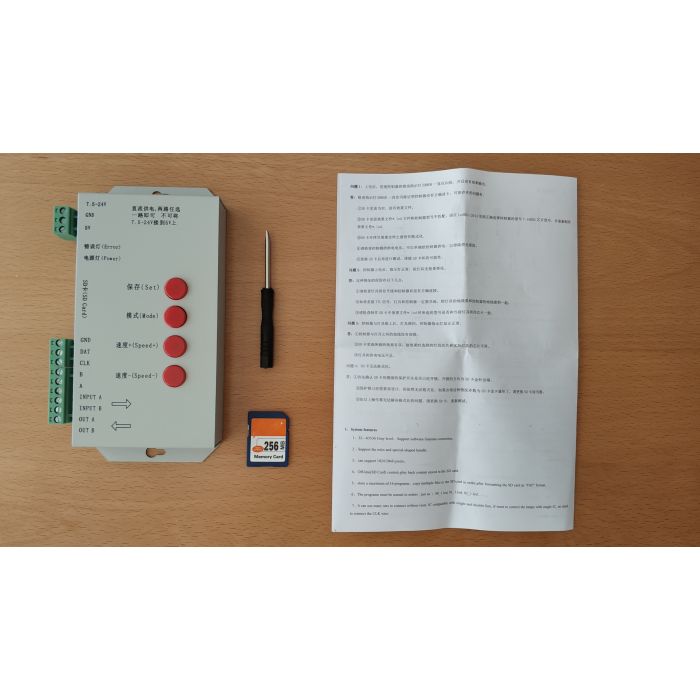

T-1000 programmable SPI digital master LED controller

1. If T-1000 supports 512 lights or below, the playback speed of up to 30 frames/sec, if the port supports more than 512 lights, the frame rate with the increase in the number of lights automatically reduced.

2. Display files naming: when placing one file, copy the software generated display file to the formatted SD card, when placing multiple files should be named as “00led”, 01led”, 02led”…(00means the first display file, 01means the second, and so on)

Support chips:

Support chips	LedEdit corresponding model	Single one support lights	Remarks LED pixel RGB
LPD6803,D705,1101,6909,6912	T-1000-6803	2048pixels
LPD8806,LPD8809	T-1000-8806	2048pixels
TM1803,TM1804,TM1809,TM1812	T-1000-TM	2048pixels	TM1804 and TM1809 are divided into high and low
DMX512	T-1000-DMX	170/512pixels	Compatible standard DMX512agreement
WS2801,WS2803	T-1000-WS	2048pixels
TLS3001,TLS3002	T-1000-TLS	2048pixels
P9813	T-1000-P9813	2048pixels
SM16715	T-1000-SM16715	2048pixels
SM16716	T-1000-SM16716	2048pixels
BS0815	T-1000-0815	2048pixels
Match 6909,6912 Guardrail tube	T-1000-HL32	1024pixels×sub-control quantity	Must connect sub-control board

Screen printing definition:

7.5-24V	DC power input, to provide two sets of power input, select a group can be
5V
GND	Power Ground
ERROR	Error indicator
POWER	Power LED
SD CARD	SD card slot
CLK	Output signal CLK
DAT	Output signal DATA
GND	Signal ground
B	Compatible with DMX, differential A(DAT+), and differential B(DAT-).
A
GND	Signal ground

Regulatory function button:

SET	Save Settings to save current settings file and the playback speed
MODE	Switch File
SPEED+	Speed up the playback speed
SPEED-	Slow down the playback speed

Note

1. T-1000 controller can only use a single one;

2. T-1000 is single port output, can support up to 1024/2048 pixels;

3. When control single-line IC, connect the DAT, GND of the controller and lamp correspondingly

4. When using differential signal(485 signal), connect the controller output signal A, B and lighting signal line A(DAT+), B(DAT-) correspondingly

Specific parameters

Memory Card

Type: SD Card (if control more lights, suggest using high speed SD card)

Capacity: 256MB to 2GB

File Format: FAT format

Store files: .led

Note

1. To copy files to SD card, you must first format the SD card, pay attention to is that each copy must be formatted before.

2. SD card must be formatted as "FAT" format.

Controller on the SD card can not be hot-swappable, plug the SD card every time, you must first disconnect the power supply controller

Question 1: After power, the T-1000 ERROR indicator has been flashing without display output

Answer: The ERROR indicator has been flashing means the controller did not read the card correctly, possible problems:

1. SD card is empty, with no effect file

2. The effect file in the SD card and the controller model are not match, please choose correct controller model in LedEdit and then re-create the effect file led

3. SD card did not format to FAT before copy effect files

4. Please check the supply power voltage, the controller can be individually powered to exclude power reasons

5. Changing the SD card and then test to exclude the possibility of a bad SD card

Question 2: The controller is powered on, the indicator is normal, but no effect change in lighting

Answer: The reasons for this are as follows:

A. Check if the lighting′s signal line and the controller connected correctly

B. If the TTL signal is received, the lamp and the controller must be common ground, that means connect the lighting′s and the controller′s ground together

C. Check if the model chose during making display files on the SD card match the chips used in the lighting.
