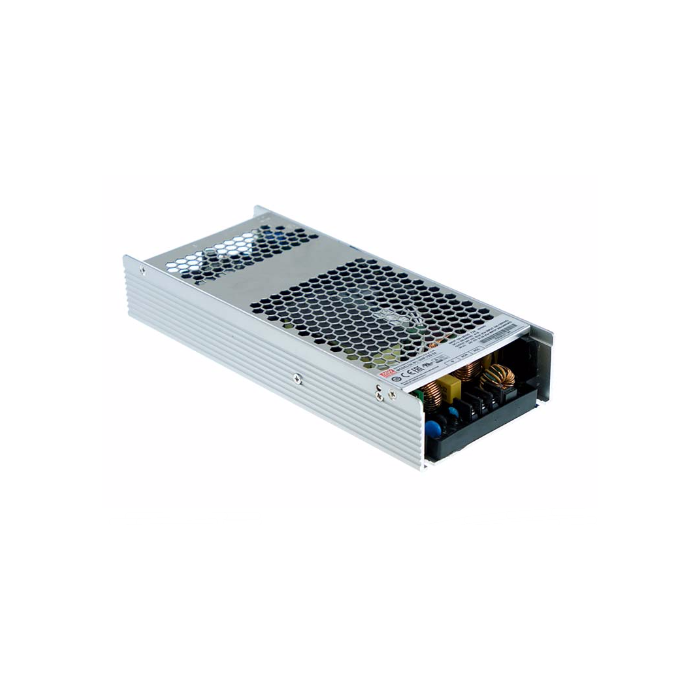

Mean Well UHP-750 slim type with PFC switching power supply

£134.78
In stock
SKU
2951
  • Buy 10 for £126.80 each and save 6%
  • Buy 100 for £123.61 each and save 8%

Made in China with 3 years warranty, genuine version, high quality, not cheap copycat

We are the distributor of Mean Well products, directly from factory, good price

Click here to know more detailed information about Mean Well UHP-750 switching power supply

Mean Well UHP-750-12 is default version, UHP-750-24, UHP-750-36, UHP-750-48 is optional



Feature

Slim and Low profile (41mm)

Fanless and conduction-cooled design

Withstand 300VAC surge input for 5 seconds

Built-in active PFC function

-30~+70°C working temperature

Output voltage and constant current level programmable

Protections: Short circuit / Overload / Over voltage / Over temperature

Built-in remote ON-OFF control

DC OK active signal

Operating altitude up to 5000 meter

LED indicator for power on

3 years warranty



Certificates

Safety: UL/EN62368-1EMC: EN 55032 / 55024



Applications

Industrial automation machinery

Industrial control system

Mechanical and electrical equipment

Electronic instruments, equipmentor apparatus

Test and measurement instrument

Laser related machine

Charging related equipment

Household appliances



Description

UHP-750 series is a 750W single-output slim type power supply with 41mm of low profile design. Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 12V, 24V, 36V and 48V. In addition to the high efficiency up to 95%, that the whole series operates from -30°C~ 70°C under air convection without fan. UHP-750 has the complete protection functions and 5G anti-vibration capability; It is complied with the international safety regulations such as TUV EN62368-1, UL62368-1, and the design refers to EN61558-1 and EN60335-1. UHP-750 series serves as a high performance power supply solution for various industrial applications.
