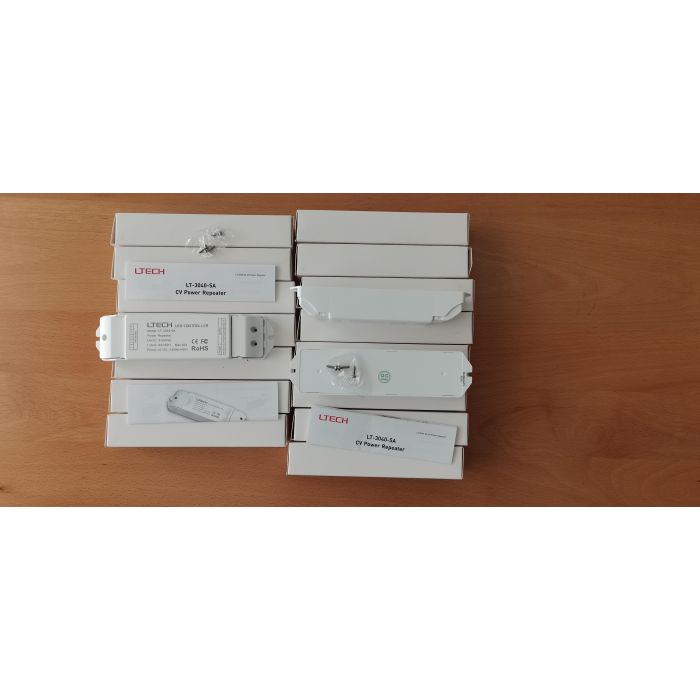

LTech LT-3040-5A constant voltage 4 channels power repeater

LED Power Repeater is suitable for all of our company's power-output style controllers' power expansion, it accepts PWM control, the control quantity of LED lights would be twice as much by adding one more power repeater, unlimited quantity of power repeater to be connected theoretically.

Signal input and output of LED power repeater have security protection function with photoelectricity isolation of 3KV.

Input Signal: PWM (200Hz~2000Hz)

Input Voltage: 5~24Vdc

MaxCurrentLoad: 5A×4CH Max.20A

MaxPowerLoad:(0~25...120W)×4CH Max.480W

Working Temperature: -30°C ~55°C

Dimensions: L175×W44×H30(mm)

PackageSize:L178×W48×H33(mm)

Weight(G.W.):145g
