R4-5A LTech 2.4GHz wireless 4-in-1 RGBW 4 channels LED controller
- Buy 51 for £26.12 each and save 9%

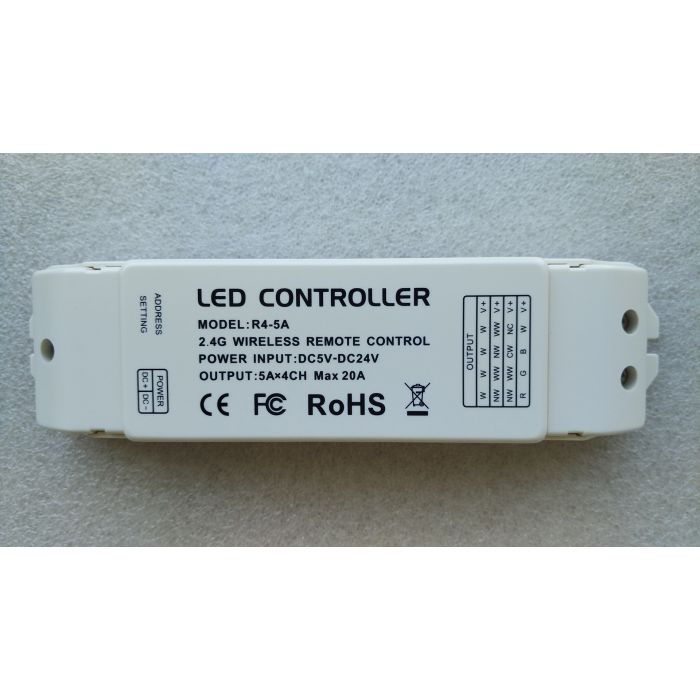

LTech R4-5A
Made in Zhuhai of China, reliable quality with 5 years warranty
Direct from factory, good price, RGBW quad colors control
The 4 channels DMX512 RGBA or RGBW controller will drive any of our RGB flexible strip lighting with the added advantage of driving a fourth channel of either white or amber. 4 channels 2.4G Hz wireless multi-zone receiver/controller designed to be controlled by the DX8 touch panel or WiFi104 controller for larger commercial installations. The driver is suitable for single colour/CT/RGB & RGBW control.
LTech R4-5A
Model: R4-5A
Wireless frequency: 2.4 GHz
Input voltage: DC5V~DC24V
Maximum current load: 5A × 4CH Max 20A
Max output power: 100W/240W/480W (5V/12V/24V)
Remote distance: 25 meters
Working temperature: -20°C~40°C
Product size: L 175 × W 44 × H 30 mm
The LED receiver controller R4-5A can be used in combination with WiFi 104 or DX8 controller. It has four outputs and can be placed up to 50 meters in an open environment from the WiFi-104 and 30 meters from the DX8 within an open enviroment. Consider walls and other obstacles, which reduces the range.
Note: the R4-5A cannot work as a stand-alone unit, but the optional WiFI-104 controller or DX8 touch panel will give you great flexibility to control the color changing.
R4-5A wiring diagram:
