LTech LT-3600 multi function 8 touch buttons RGB LED controller
- Buy 50 for £12.56 each and save 7%

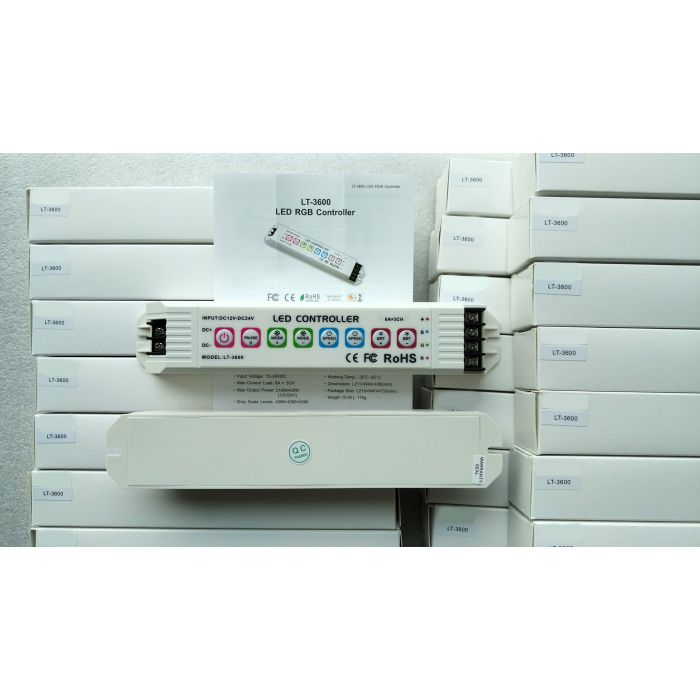

LTech LT-3600
Made in Zhuhai, reliable quality with 5 years warranty, genuine version, not copycat
We are the distributor of LTech controllers, direct from factory, good price
DC 5-24V input, 6Ax3CH output, 8 touch buttons, 16 modes
Platinum series LED controller is a universal RGB controller for entire color changing, which adopted the most advanced PWM (Pulse-Width Modulation) controlling technology at present. PC engineering plastic panel with T-Touch/soft-touch function button and exquisite appearance. Widely controlled for RGB full color LED module, LED strip,LED SMD tape and all resistance of the current limit LED lighting products.
1、Automatically adapt to LED light which works from DC5V-24V or DC12V-24V.
2、4096 levels of grey scale per RGB, even & smooth for color gradual changes, without any flashes.
3、16/32 fantastic modes such as color smooth , color skipping, horserace, strobe, etc.
4、Can stop at static single color, speed & brightness adjustable at pause status.
5、Working with power repeater to expand power output unlimitedly.
|
LT-3600 |
|
| Input voltage | DC5V~DC24V |
| Max current load | 6A/CH x3 Max18A |
| Max output power | 216W/432W(12V/24V) |
| Scale levels | 4096×4096×4096 |
| Control button | 8 Press buttons |
| Function Mode | 16 modes |
| working temperature | -30℃~55℃ |
| Dimension | L211×W40×H30(mm) |
| Package Size | L215×W43×H33(mm) |
| Weight (G.W) | 160g |
