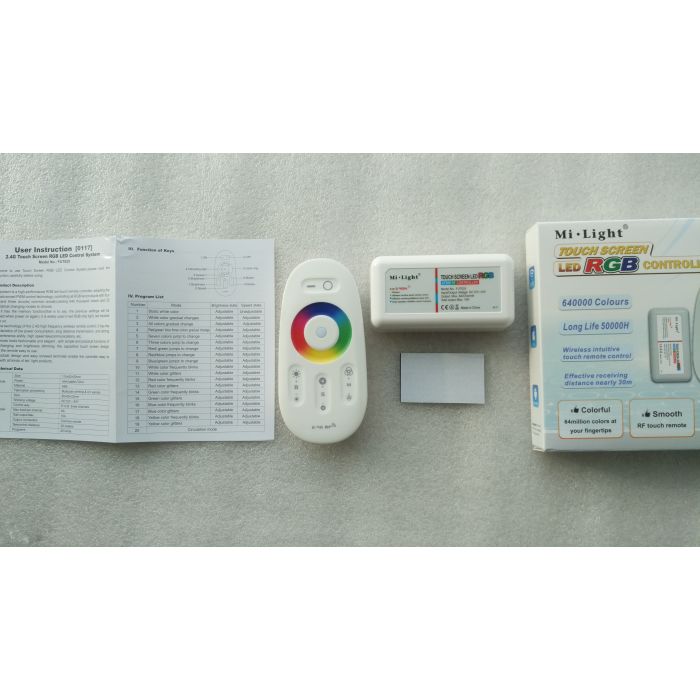

MiBoxer FUT025 MiLight RGB LED strip controller

MiBoxer FUT025 MiLight RGB LED strip controller

This system is a high performance RGB LED touch remote controller, adopting the most advanced PWM control technology, controlling all RGB LED products with four lines and three circuits (common anode), owning 640 000 colors and 20 automatical changing modes to choose.

Also, it has the memory function (that is to say, the previous settings will be resumed when power on again). It is widely used in led RGB strip light, LED module and so on.

With the technology of the 2.4G high frequency wireless remote control, it has the characteristics of low power consumption, long distance transmission, and strong anti-interference ability, high speed telecommunications, etc.

The remote looks fashionable and elegant, with simple and practical functions of color changing and brightness dimming, the capacitive touch screen design makes the remote easy to use.

The modular design and easy screwed terminals enable the controller easy to match with all kinds of led light products.

Main features

640000 Colours

Long life 50000 hours

Wireless intuitive touch remote control

Plug and play installation

FUT025 Controller

Size: 85 x 45 x 23 mm

Working voltage: DC 12V ~ 24V

Control way: R G B three channels

Max load per channel: 6A

Total 0utput current: 18A

Output connection: Common Anode(+)

Programs: 20 kinds

Product Name: 2.4GHz Touch RGB Remote Control

Voltage: 3V(section 2 batteries)

Transmission Frequency: 2.4GHz

Modulation Method: GFSK

Transmitting Power: 6dBm

Standy Power Consumption: 20uA

Control Distance: 30 meters

Size: 110*52.6*20mm
