DIN-DMX-4CH LTech contant voltage 4 channels DMX512-PWM LED decoder
- Buy 31 for £21.33 each and save 8%

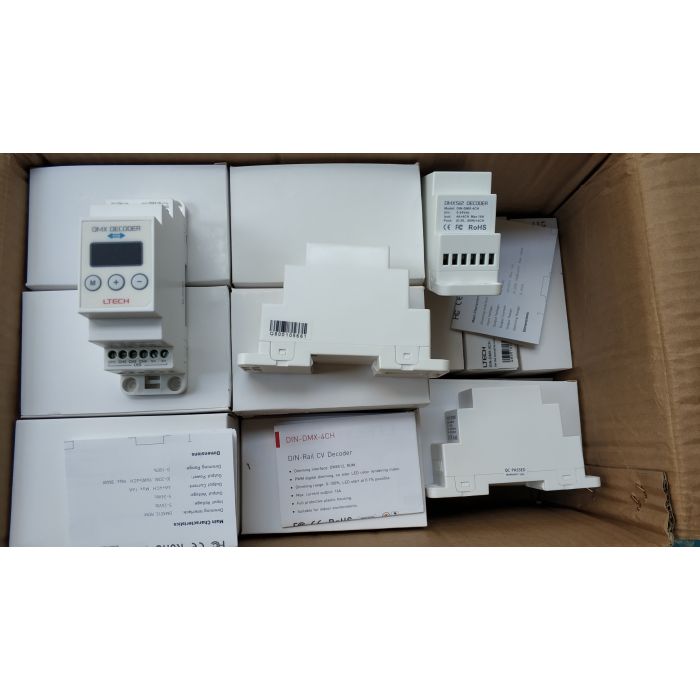

LTech DIN-DMX-4CH
Made in Zhuhai of China, reliable quality with 5 years warranty, genuine version, not copycat
Direct from factory, good price
RGBW quad colors control
The 4 channels DMX512 RGBA or RGBW decoder will drive any of our RGBW flexible strip lighting with the added advantage of driving a fourth channel of either white or amber.
16 bit or 8 bit input
3 dimming curve optional
Frame rate is as high as 850 FPS
DMX Decoder adopted the advanced micro-electronic control technology to convert universal DMX512/1990 digital signal to CC/CV PWM signal to drive LED, which controlled by DMX512 console, realize 0-100% brightness or various changing effect. And can control single color, dupi-color, RGB, RGBY, RGBW, RGBA LED lights.
Have excellent performance:
16-bit dimming curve.
Frame rate is as high as 850 frames per second.
Built-in protection circuit of resistance to lighting stroke and ESD static electricity.
|
DIN-DMX-4CH 4 channels CV DMX Decoder |
|
| Input signal | RDM, DMX512 |
| Input voltage | DC5V～DC24V |
| Max load current | 4A ×4CH Max 16A |
| Max output power | 80W/192W/384W/(5V/12V/24V) |
| Dimming range | 0~100% |
| Working temperature | -30℃～55℃ |
| Dimension | L112×W35×H67(mm) |
| Package Size | L114×W37×H70(mm) |
| Weight (G.W) | 120g |
16-bit Dimming Curve
Deep Dimming
0-100% PWM dimming, accord with the sense of human eyes, more comfortable and natural lighting experience, suitable for TV shooting.
Dimming--more natural
Coloring--more vivid
Changing effects--more smooth
850 frames per second for frame rate
Higher processing
High-speed data process for the console, up to 850 frames per second.
