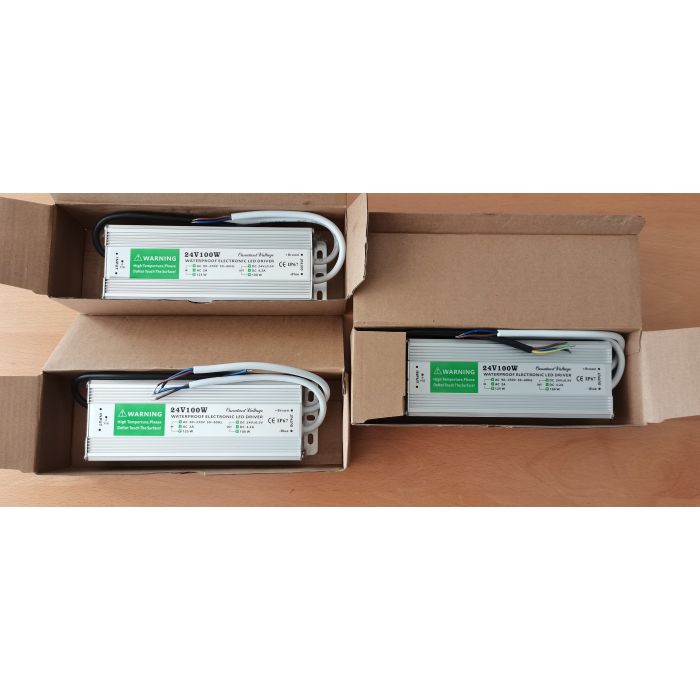

96W 12V 24V IP67 outdoor waterproof LED power supply
- Buy 100 for £12.56 each and save 12%
- Buy 1000 for £11.36 each and save 21%
good price, reliable quality
Input
Voltage Range: AC 90~250V
Frequency Range: 47~63Hz
Efficency: >85%
AC current (max): 1.1A @ 220V, 2.0A @ 115V
AC Inrush Current: 40A @ 230V
Output
DC Voltage: 12V (default) / 24V +/- 3%
Rated Current: 8.0A/4.0A
Rated Power: 96W
Ripple & Noise (max): mVp-p < 1% Uout
Load Regulation: +/- 1%
Setup Time: 500ms
Rise Time: 20ms
Hold UP Time: 30ms @ 230V, 10ms @ 115V
Protection
Short Circuit Protection
Overload Protection: 130~150%
Over Voltage Protection: 115~135%
Environment
Working Temperature: -20~50C
Working Humidity: 20%~90% RH
Storage Temperature: -40~60C
Storage Humidity: 20%~95% RH
Safety Compliance
Safety Standard: meet CE, FCC, GB4943
Withstand Voltage: IP/OP 5mA 2KVAc
Isolation Resistance: IP/OP 100M Ohms
Waterproof Rank
Waterproof Rank: > IP67
Size
Dimension: 153 x 70 x 40mm
Weight: 860gram
