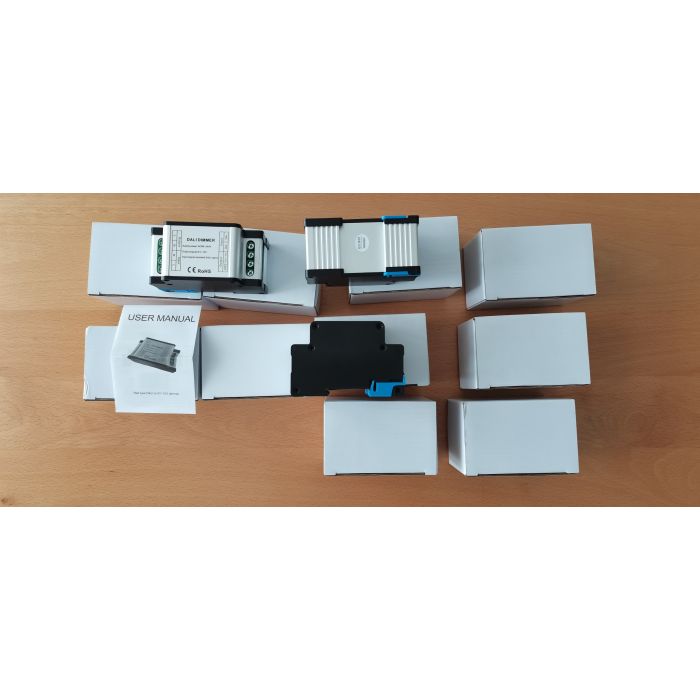

DL108 DALI signal turns to 0-10V LED lighting converter
- Buy 100 for £15.91 each and save 6%
made in Shenzhen, reliable quality with 2 years warranty, direct from factory, good price
supply voltage: AC 85~255V
load output: 1 channel 0-10V signal output
dimming signal: DALI (IEC62386)
signal port current: <2mA
signal segregate voltage: 4KV
dimmer range: 0.1~100%
working temperature: -20~60 celsius
net weight: 70g
gross weight: 99g
external dimension: L149*W40*H28 mm
packing size: L150*W55*H50 mm
connect way: spring type from screw the wiring way, terminal blocks diameter 2.6 mm
can with a whole and grouping dimming, addressing dimming
can through the default scene to dimming
can flexible configuration dimming parameters
can inquire dimming parameter of dimmer
parameter memory function
have international standard, can be compatible with different factory manufacture DALI equipment
