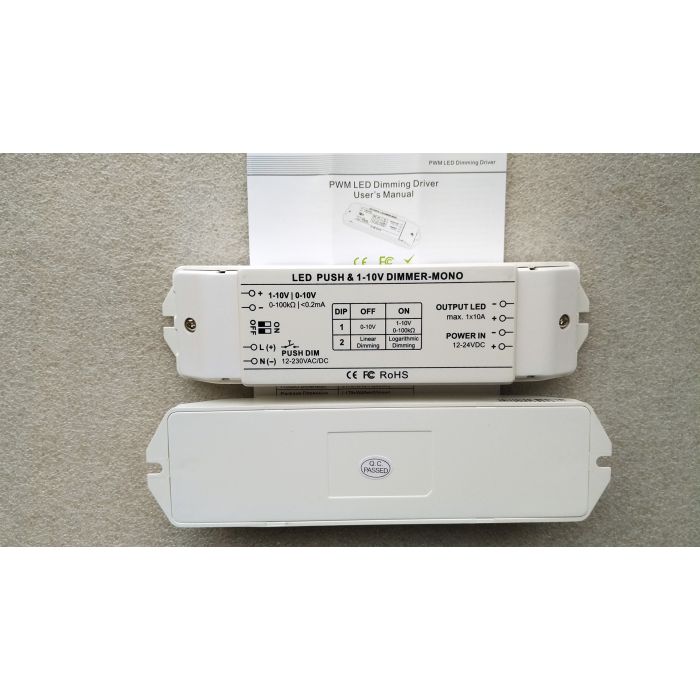

10A LED 1-10V push constant voltage mono LED dimmer
- Buy 100 for £16.71 each and save 13%
- Buy 1000 for £15.91 each and save 17%
Direct from factory, good price with high quality, 3 years warranty
Features
1. Working voltage from DC 12-24V
2. 1 output channel, maximum output 10A
3. PUSH DIM input voltage AC/DC12V-230V
4. 0/1-10V to PWM dimming signal conversion, linear or log
5. Support linear dimming or logarithmic dimming
6. Short circuit protection; over current protection
7. Compatible with many brand dimming systems
8. Multi units can be worked together or use our power repeaters to control more lamps
9. Power loss memory function
Input voltage: DC 12-24V
Max current: 10A/CH×1CH
Input signal: 0/1-10V or PUSH DIM
Output signal: constant Voltage PWM
Max output power: 120W(12V)/240W(24V)
Product dimension: L176×W46×H30(mm)
Package dimension: L179×W49×H33(mm)
Product weight: 100g
Certification: CE, FCC, RoHS
