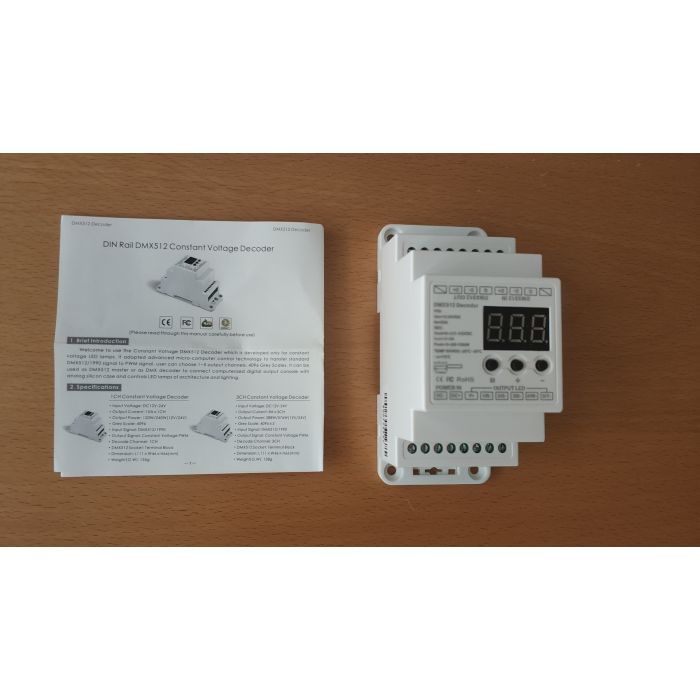

BC-835-DIN rail 5 channels constant voltage DMX512 decoder
- Buy 10 for £18.54 each and save 13%
- Buy 100 for £16.71 each and save 22%
5 channels DMX512 / 1990 protocal support
We are the distributor of Bincolor products, directly from factory, good price, genuine version, not cheap copycat
Click here to view the detailed specifications of BC-835-DIN
Welcome to use the Constant Voltage DMX512 Decoder which is developed only for constant voltage LED lamps. It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal. user can choose 1~5 output channels, 4096 Grey Scales. It can be used as DMX512 master or as DMX decoder to connect computerized digital output console with analog silicon case and controls LED lamps of architecture and lighting.
Feature function
1. Automatically adapts input voltage DC 12V-24V.
2. Input standard DMX512 signal; 3-digital-display shows DMX address code.
3. 5 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft & stable without strobe flash.
4. DMX Master mode, slave mode available.
5. Built-in 8 color changing modes and 10 speed scales.
6. Indicator of the DMX512 signal receiving status.
7. Power loss memory function.
8. Wrong wiring protection at DMX port,over current protection and short circuit protection.
9. The DIN rail style design facilitates the installation of large-scale projects.
Product parameter
|
Model |
BC-835-DIN |
|
Input voltage |
DC12V-DC24V |
|
Maximum load current |
5A×5CH |
|
Maximum Output Power |
300W (12V) / 600W(24V) |
|
Input Signal |
DMX512/8 bit/16 bit selectable |
|
Output Signal |
Constant Voltage PWM |
|
Decode Channel |
5CH |
|
DMX512 socket |
Terminal Block |
|
Dimension |
L111×W46×H66(mm) |
|
Weight (G.W) |
140g |
