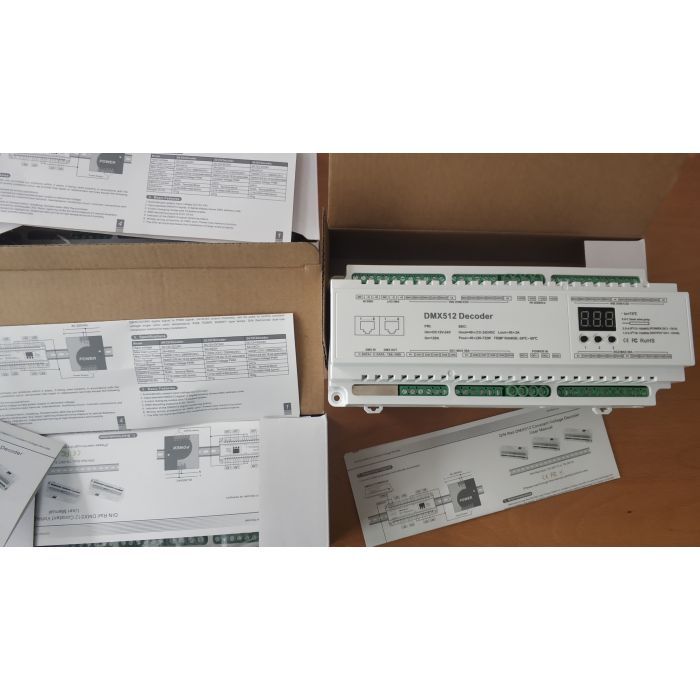

BC-640-DIN rail 40 channels CV DMX512 decoder
- Buy 20 for £62.60 each and save 20%
40 channels DMX512 / 1990 protocal support
We are the distributor of Bincolor products, directly from factory, good price, genuine version, not cheap copycat
Click here to view the detailed specifications of BC-640-DIN
Welcome to use the DIN Rail high Power DMX512 constant voltage decoder is specially developed for constant voltage LED lamps. It adopts advanced microcomputer control technology to convert universal DMX512/1990 digital signal to PWM signal. 40 output channels, can be used to control constant voltage single color, color temperature, RGB, RGBW, RGBWY type lamps. DIN Rail/screw dual-use installation method for easy installation.
Feature function
1. Automatically adapts input voltage DC12V-24V.
2. Input standard DMX512 signal; 3-digital-display shows DMX address code.
3. 6 color changing modes and 10 speed scales.
4. DMX decoding supports 8-bit,16-bit.
5. Indicator of the DMX512 signal receiving status.
6. Wrong wiring protection at DMX port.Power loss memory function.
7. The DIN rail style facilitates the installation of large-scale projects.
Product parameter
|
Model |
BC-640-DIN |
|
Input voltage |
DC12V-DC24V |
|
Maximum load current |
40A×3CH |
|
Maximum Output Power |
1440W (12V) / 2880W(24V) |
|
Input Signal |
DMX512/8 bit/16 bit selectable |
|
Output Signal |
Constant Voltage PWM |
|
Decode Channel |
40CH |
|
DMX512 socket |
RJ45、Terminal Block |
|
Dimension |
L218×W90×H58.5(mm) |
|
Weight (G.W) |
461g |
