LTech Artnet-DMX-2 Artnet signal in DMX out 1024 channels converter

Be the first to review this product

£99.69

In stock

SKU

2044

Buy 11 for £94.90 each and save 5%

Notify me when the price drops

LTech Artnet-DMX-2

Made in Zhuhai of China, we are distributor of LTech controllers, genuine version, not copycat

Direct from factory, reliable quality, good price

1024 channels support, supports Madrix, Arkros

Click here to know more details about Artnet-DMX-2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

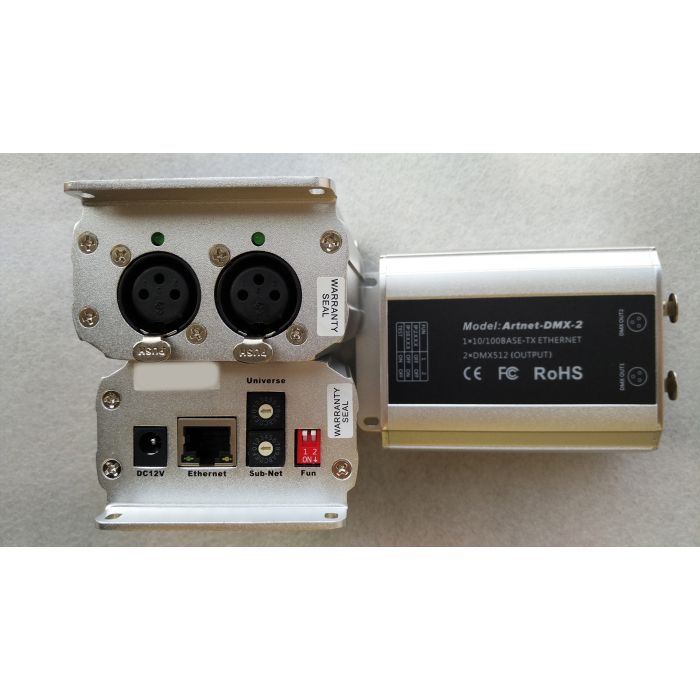

LTech Artnet-DMX-2

Brief introduction

Artnet-DMX converter is the Ethernet Control System based on the Artnet protocol, used to convert the Artnet network date package into DMX512 data, adopting high-speed ARM processor, stable and reliable working. Following Art-net standard protocol, it support RJ45 network interface and standard DMX512 output interface.

Artnet-DMX-1 can be configured in one of two ways: Artnet convert into DMX512, or DMX512 convert into Artnet. Artnet-DMX-2 has two standard DMX512 data output port, output 1024 data in total.

It is compatible with all the effects lighting control software which support Art-net protocol, widely used in the LED dot matrix and the stage lighting control network in needing lots of DMX-512 data, especially for TV station recorded scene, stage performances, entertainment and so on.

Performance Features

● Based on Artnet protocol network data communication, accept network DMX data;
● IP address is bound to Subnet, no need to reset, plug and play.
● Artnet-DMX-1 could be configured for either Artnet-DMX512 type or DMX512- Artnet Type.
● When configured for DMX -Artnet type. Data packets will be sent over the network by broadcast Mode.
● Manage Artnet on broadcast mode or unicast mode.
● One set DMX512 data-out for Artnet-DMX-1, two for Artnet-DMX-2.
● Set different network segments to avoid multiple sets Artnet data interference.
● Compatible with the light software based on Artnet Protocol, control stage lighting and LED lighting simultaneously.

Product parameter

Artnet-DMX-1 bidirectional converter 512 channels
Power input	AC100-240V (with a power adaptor)
Input signal	Artnet/DMX512
Output signal	DMX512/Artnet
DMX channels	512 channels
working temperature	-20℃～65℃
Dimension	L120×W73×H45mm
Package Size	L200×W80×H50mm
Weight (G.W)	290g

Artnet-DMX-2 1024 channels
Power input	AC100-240V (with a power adaptor)
Input signal	Artnet
Output signal	DMX512
DMX channels	1024 channels
working temperature	-20℃～65℃
Dimension	L120×W73×H45mm
Package Size	L200×W80×H50mm
Weight (G.W)	290g
