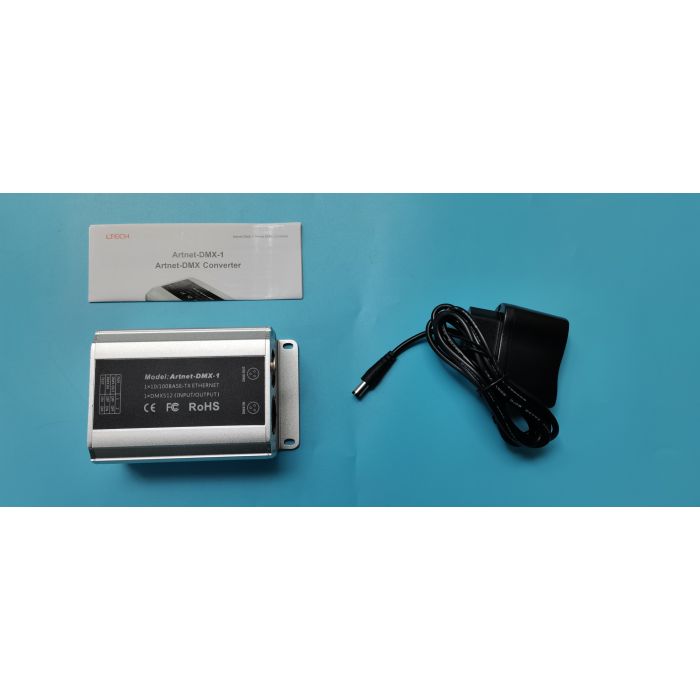

Artnet-DMX-1 LTech 512 channels signal bidirectional converter
- Buy 11 for £94.90 each and save 5%
LTech Artnet-DMX-1
Made in Zhuhai of China, we are distributor of LTech controllers, genuine version, not copycat
Direct from factory, good price, reliable quality
512 channels support, supports Madrix, Arkros
Click here to view the details of Artnet-DMX-1
LTech Artnet-DMX-1
Brief introduction
Artnet-DMX converter is the Ethernet Control System based on the Artnet protocol, used to convert the Artnet network date package into DMX512 data, adopting high-speed ARM processor, stable and reliable working. Following Art-net standard protocol, it support RJ45 network interface and standard DMX512 output interface.
Artnet-DMX-1 can be configured in one of two ways: Artnet convert into DMX512, or DMX512 convert into Artnet. Artnet-DMX-2 has two standard DMX512 data output port, output 1024 data in total.
It is compatible with all the effects lighting control software which support Art-net protocol, widely used in the LED dot matrix and the stage lighting control network in needing lots of DMX-512 data, especially for TV station recorded scene, stage performances, entertainment and so on.
- ● Based on Artnet protocol network data communication, accept network DMX data;
- ● IP address is bound to Subnet, no need to reset, plug and play.
- ● Artnet-DMX-1 could be configured for either Artnet-DMX512 type or DMX512- Artnet Type.
- ● When configured for DMX -Artnet type. Data packets will be sent over the network by broadcast Mode.
- ● Manage Artnet on broadcast mode or unicast mode.
- ● One set DMX512 data-out for Artnet-DMX-1, two for Artnet-DMX-2.
- ● Set different network segments to avoid multiple sets Artnet data interference.
- ● Compatible with the light software based on Artnet Protocol, control stage lighting and LED lighting simultaneously.
Artnet-DMX-1 bidirectional converter 512 channels |
|
| Power input | AC100-240V (with a power adaptor) |
| Input signal | Artnet/DMX512 |
| Output signal | DMX512/Artnet |
| DMX channels | 512 channels |
| working temperature | -20℃～65℃ |
| Dimension | L120×W73×H45mm |
| Package Size | L200×W80×H50mm |
| Weight (G.W) | 290g |
Artnet-DMX-2 1024 channels |
|
| Power input | AC100-240V (with a power adaptor) |
| Input signal | Artnet |
| Output signal | DMX512 |
| DMX channels | 1024 channels |
| working temperature | -20℃～65℃ |
| Dimension | L120×W73×H45mm |
| Package Size | L200×W80×H50mm |
| Weight (G.W) | 290g |
