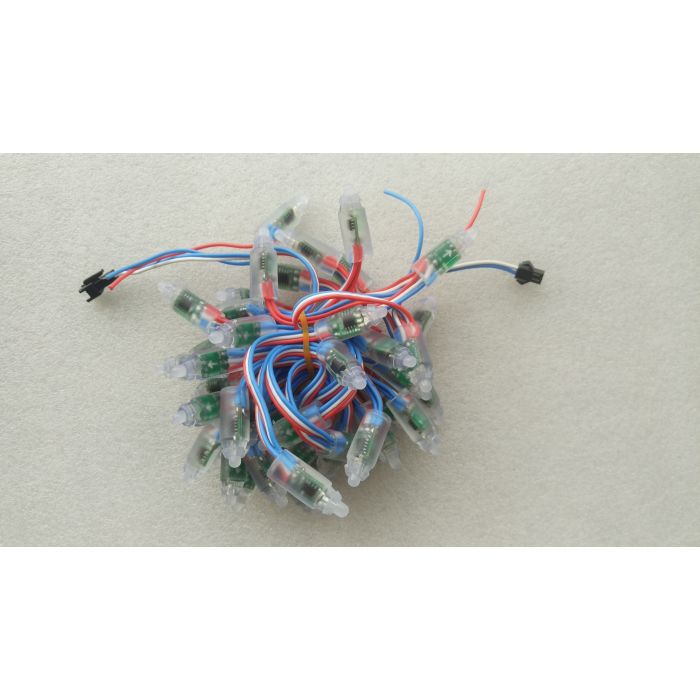

5V 9mm IP68 addressable WS2811 round 50 nodes RGB LED pixel light
- Buy 100 for £5.38 each and save 15%
- Buy 1000 for £4.75 each and save 25%
Model: LM-WS2811
intelligent individually addressable programmable WS2811 IC, RGB color, 256 scales, this string has 50 node pixels with waterproof connector, 5mm F5 RGB LED, 9mm small open punch through-hole, excellent performance
DC 5V working voltage, safe assurance
made in Shenzhen, reliable quality with 2 years warranty
We are professional on LED light products, you can customize with special requirements. For any questions on product specifications, production time or shipping methods, please feel free to contact us
Specification
Working voltage: DC 5V
Current: 60 mA
Power consumption: 0.3W
Working temperature: -40°C~ 60°C
Protection grade: IP68 waterproof
Dimension: 9mm small through-hole, higher resolution than 12mm punching hole
LED type: 1 piece of 5mm F5 RGB strawhat LED, smaller than 8mm F8 strawhat LED
LED quantity: 1 piece
Viewing angle: >90 degrees
Lifespan: MTBF>50000 hours
Feature
Programable by Software
Individually control
Conformal coating, PVC glue protection
IP68 waterproof protection rate
Easy installation (punching 9mm hole on metal panel)
50 pieces per string
Applications
Meets the general lighting, environment such as: outdoors advertising, Christmas decoration
RGB pixels are digitally controllable lights you can set to any color, or animate.
Each RGB LED and controller chip is molded into a 'dot' of silicone, the dots are waterproof and rugged.
There are four flanges moulded in so that you can 'push' them into a 9mm drill hole in any material up to 1.5mm/0.06" thick.
They are typically used to make outdoor signs. Compared to our other 20mm LED dots.
These are diffused 5mm LEDs so they are not as bright but they color mix a little nicer.
A 3-conductor cable connects the pixels.
Each dot is digitally controlled, with an internal 5-bit PWM LED driver (15 bit color for 32,768 different shades). The pixels must be clocked by a micro controller.
The pixels use 5mm diffused RGB LEDs with brightness of about 300 mcd per individual R/G/B LED
