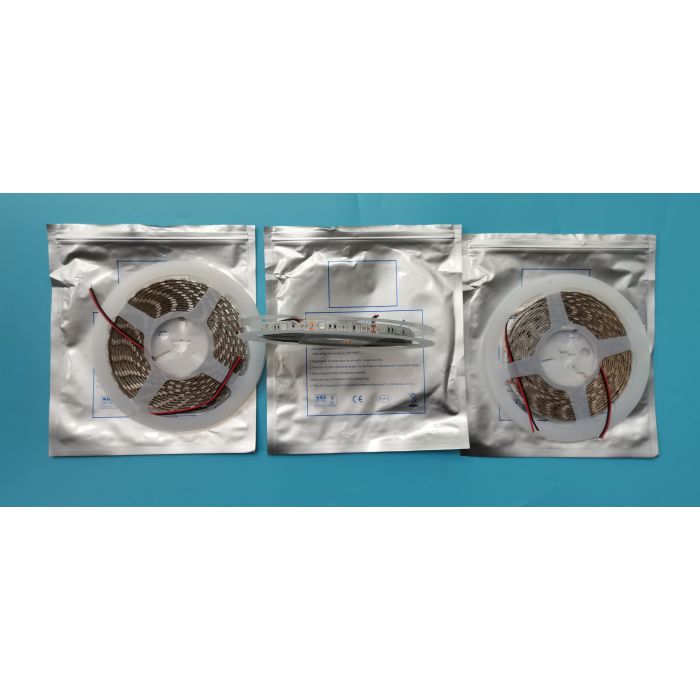

5 meters 300 LEDs 12V 850nm 940nm infrared IR SMD 5050 LED light strip
- Buy 100 for £69.34 each and save 3%
- Buy 1000 for £66.15 each and save 8%
Made in Shenzhen of China, high quality, 850nm is default, you can choose 940nm either.
Direct from factory, good price
We are LED light factory which can supply customized LED light products, for big quantity products, please contact us
Name: infrared flexible LED light strip
LED type: SMD 5050
LED quantity: 300 LEDs, 60 LEDs per meter, total 5 meters
Wavelength: 850nm is default, 940nm is available
Power: 72W/reel
Size: L500cm (16.4 feet) x W1cm x H0.25cm
Viewing angle: 120°
Working voltage: DC 12 Voltage
Working temperature: -4°F (-20°C) ~ 122°F (50°C)
Protection rate: IP65 gluewaterproof / IP67 silicone tube waterproof / IP20 non-waterproof (default)
Functions: 3 LEDs cuttable.
Lifespan: 50 000+ hours
The 850nm LEDs are much more common and actually put out more light per LED than the 940nm LEDs. This is what is in the vast majority of our infrared cameras.
The 850nm LEDs put out a slight reddish or pinkish glow if you stare right straight into the camera in the dark. You won't see the LEDs at a glance, you have to look for the glow.
Specification for 850nm IR triple chip SMD 5050 LED
|
Electrical/Optical Characteristics at TA=25℃ |
||||||
|
Symbol |
Parameter |
Device |
Test Conditions |
Min. |
Typ. |
Units |
|
λD |
Dominate Wave length |
Infrared |
IF=3*20mA |
0 |
850 |
nm |
|
C |
Capacitance infrared |
Infrared |
VF=0V; f=1MHZ |
|
110 |
PF |
|
VF |
Forward Voltage |
Infrared |
IF=3*20mA |
/ |
1.3 |
V |
|
IR |
Reverse Current |
All |
VR=5V |
/ |
5 |
uA |
|
Absolute Maximum Ratings at TA=25℃ |
||
|
Parameter |
Red |
Units |
|
Power dissipation |
81 |
mW |
|
Dc Forward Current |
30 |
mA |
|
Peak Forward Current |
160 |
mA |
|
Reverse Voltage |
5 |
V |
|
Operating/Storage Temperature |
-40℃ to +80℃ |
|
