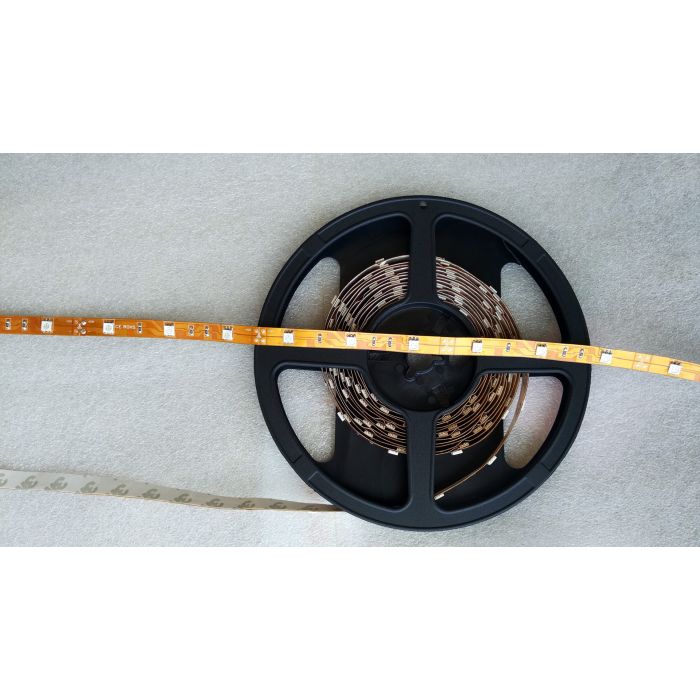

12V 5 meters 150 LEDs 850nm 940nm infrared IR SMD 5050 LED light strip
- Buy 100 for £44.62 each and save 5%
- Buy 1000 for £42.23 each and save 10%
Made in Shenzhen of China, high quality
Direct from factory, good price
We are LED light factory which can supply customized LED light products, for big quantity products, please contact us
Name: infrared flexible LED light strip
LED type: SMD 5050
Wave length: 850nm is default, 940nm is optional
LED quantity: 150 LEDs, 30 LEDs per meter, total 5 meters
Power: 36W/reel
Size: L500cm (16.4 feet) x W1cm x H0.25cm
Viewing angle: 120°
Working voltage: DC 12 Voltage
Working temperature: -4°F (-20°C) ~ 122°F (50°C)
Protection rate: IP65 glue waterproof / IP67 silicone tube waterproof / IP20 non-waterproof (default)
Functions: 3 LEDs cuttable.
Lifespan: 50 000+ hours
Specification for 850nm IR triple chip SMD 5050 LED
|
Electrical/Optical Characteristics at TA=25℃ |
||||||
|
Symbol |
Parameter |
Device |
Test Conditions |
Min. |
Typ. |
Units |
|
λD |
Dominate Wave length |
Infrared |
IF=3*20mA |
0 |
850 |
nm |
|
C |
Capacitance infrared |
Infrared |
VF=0V; f=1MHZ |
|
110 |
PF |
|
VF |
Forward Voltage |
Infrared |
IF=3*20mA |
/ |
1.3 |
V |
|
IR |
Reverse Current |
All |
VR=5V |
/ |
5 |
uA |
|
Absolute Maximum Ratings at TA=25℃ |
||
|
Parameter |
Red |
Units |
|
Power dissipation |
81 |
mW |
|
Dc Forward Current |
30 |
mA |
|
Peak Forward Current |
160 |
mA |
|
Reverse Voltage |
5 |
V |
|
Operating/Storage Temperature |
-40℃ to +80℃ |
|
