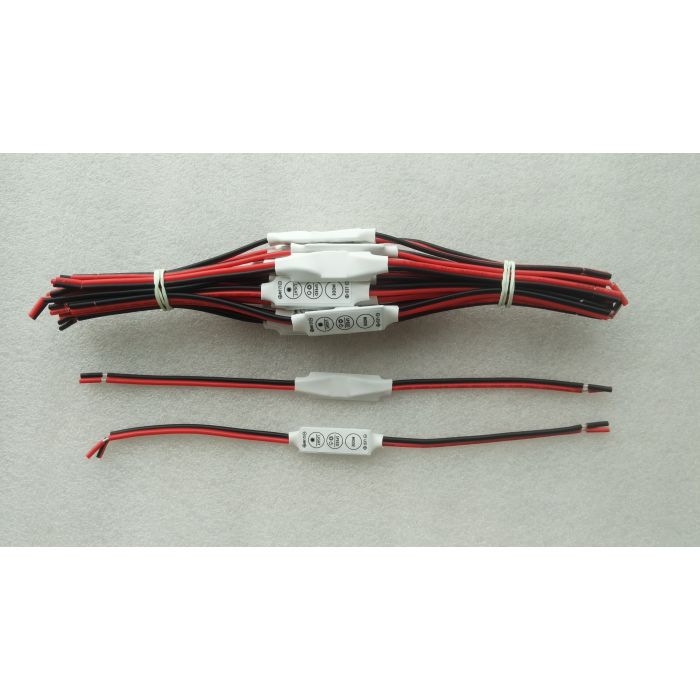

3 keys R102 single color LED strip dimmer controller
- Buy 100 for £0.80 each and save 20%
- Buy 1000 for £0.76 each and save 24%
very small single color LED strip controller
ultra slim, very portable
made in Shenzhen, high quality
Connection type: wire output is default, DC connectors are optional
Dynamic modes on single color LEDs
5 dynamic modes
256-level PWM control mode
6-level speed adjustable
8-level brightness adjustable
Up to 144W power
Auto memorize function
Easy operate keys
Ultra slim design
Competitive price
Working voltage DC 5~24V
Max output current 12A
Working temperature -30℃~+75℃
Dimension 42x12x3 (mm)
1, Connect the output cable to LED as the picture, please make sure the cable is well insulated and no short circuit.
Operation:
1, MODE key: Switch to dynamic mode. Press this key again to switch among 5 dynamic modes.
2, LIGHT key: Switch to static light mode.
3, SPEED/BRIGHT key: Adjust speed or brightness. At dynamic mode, press this key to change playing speed among 5 levels; At light mode, press this key to change light brightness among 8 levels.
