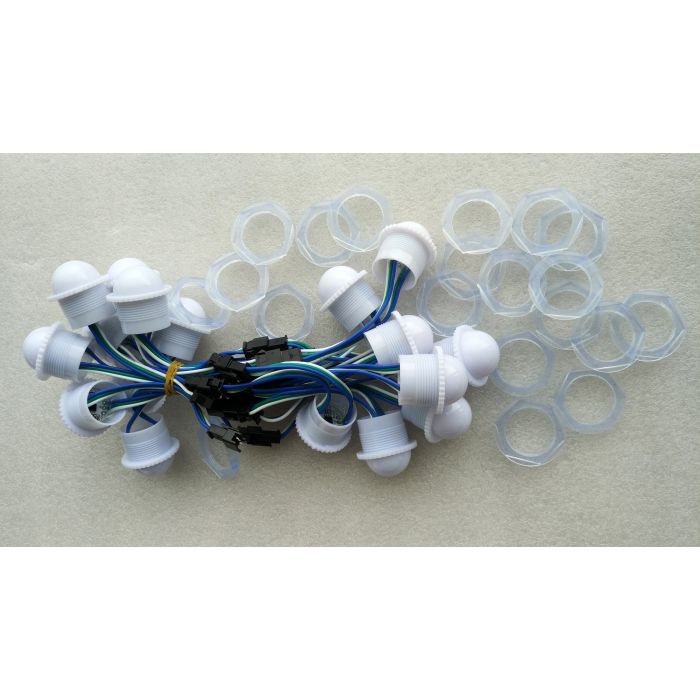

20 nodes 26mm 12V WS2811 UCS1903 RGB 5050 LED point light
- Buy 1000 for £12.16 each and save 10%
Programmable digital WS2811 or UCS1903, 20 pieces of node, each node is individually addressable
DC 12V safe working voltage, 26mm through punch hole diameter
Made in Shenzhen of China, reliable quality with 2 years warranty
We are LED light factory which can supply customized LED light products, for big quantity products, please contact us
Parameter
1) Voltage: DC 12V
2) IC type: WS2811 is default, UCS1903 is optional
3) IC quantity: 1 piece per light, 20 nodes have total 20 ICs
4) LED type: SMD 5050 RGB
5) LED quantity: 3 piece per light, 20 nodes have total 60 LEDs
6) Pixel: each module is one pixel, total 20 pixels
7) Max power: 0.72W/piece
8) Bit: 8
9) Greyscale: 256 levels
10) Diameter: 26mm through-hole, clear transparent is default, milky white color dome housing is available
11) Package: 20 pieces of node
12) Distance between lights: 100mm
Connection
1) Signal wire: DC+, DAT, GND
2) DC+ and GND connect to power supplier; DAT and GND connect to controller
3) Relative Controller: SPI controller support WS2811, UCS1903
4) Support online control
Color
1) Each pixel can be controlled individually
2) Can show any colors
3) Can be used as flexible LED display screen to show image and video
Installation Notice
1) Make sure the connection is correct according to the diagram
2) Pay attention to the parameters limit of voltage. Do NOT run over the peak value
