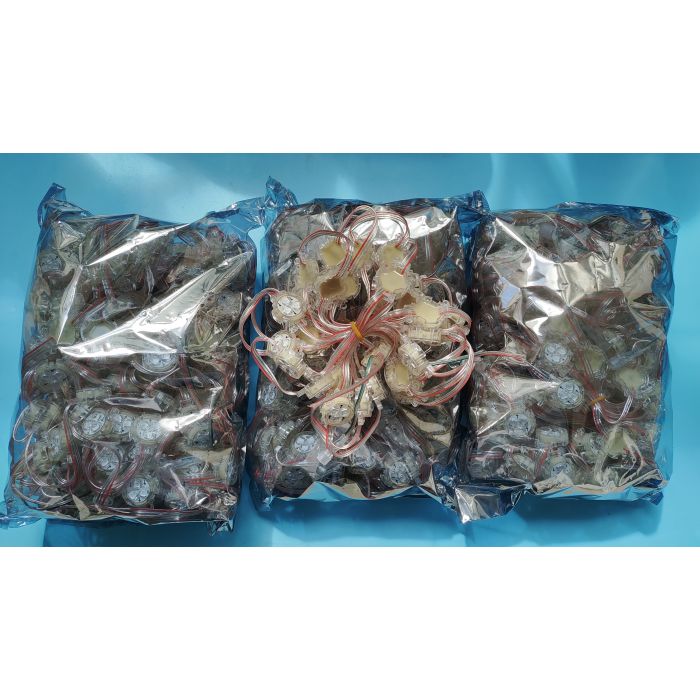

30mm 12V WS2811 UCS1903 SM16703 RGB 5050 LED point light
- Buy 100 for £9.53 each and save 8%
Programmable digital WS2811, UCS1903 or SM16703 IC, this price includes 30 pieces of module node, each LED node can be addressable individually
DC 12V safe working voltage
Made in Shenzhen of China, reliable quality with 2 years warranty
We are LED light factory which can supply customized LED light products, for big quantity products, please contact us
Parameter
1) Voltage: DC 12V
2) IC type: WS2811 is default, UCS1903 and SM16703 are optional
3) IC quantity: 1 piece per light, 30 nodes have total 30 ICs
4) LED type: SMD 5050 RGB
5) LED quantity: 3 piece per light, 30 nodes have total 90 LEDs
6) Pixel: each module is one pixel, 30 nodes total 30 pixels
7) Max power: 0.72W/piece
8) Bit: 8
9) Greyscale: 256 levels
10) Diameter: 30mm, clear transparent dome housing is default, milky white color dome housing is available, IP68 waterproof protection rate
11) Package: 30 pieces/string
12) Distance between lights: 150mm
Connection
1) Signal wire: DC+, DAT, GND
2) DC+ and GND connect to power supplier; DAT and GND connect to controller
3) Relative Controller: SPI controller support W2811, UCS1903, SM16703
4) Support online control
Color
1) Each pixel can be controlled individually
2) Can show any color
3) Can be used as flexible led display screen to show image and video
Installation Notice
1) Make sure the connection is correct according to the diagram
2) Pay attention to the parameters limit of voltage. Do NOT run over the peak value
