MiBoxer PA5 MiLight 5 channels high performance LED amplifier
- Buy 100 for £4.75 each and save 8%

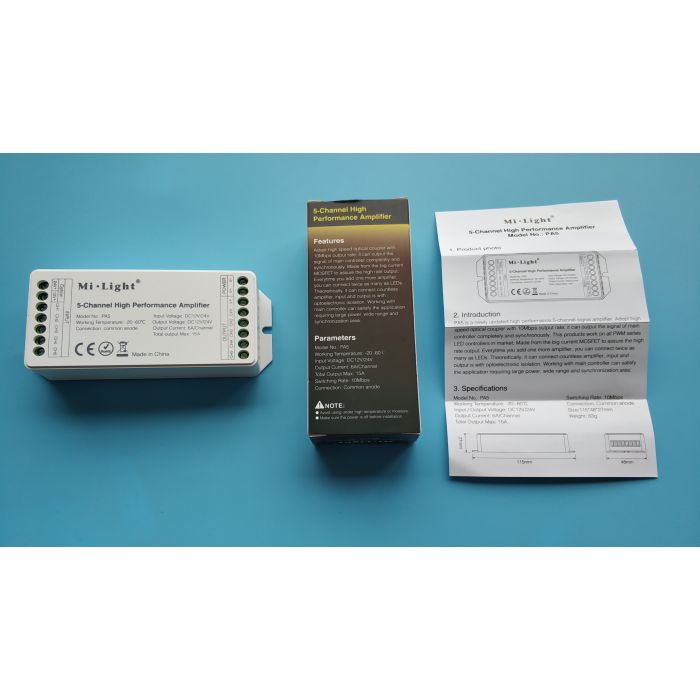

MiBoxer PA5 MiLight 5 channels high performance LED amplifier
Strong compatibility, compatible with MiLight series controllers and all PWM type LED controller in market. We adopt high current MOSET output to assure the high output power
Application Diagram, dotted line note: please choose and connect to the correct V+ (12V/24V) terminal according to the voltage of LED strip
Adopt high-end PC housing with best quality
Made in Shenzhen of China with reliable quality, we are distributor of MiLight PA5 products, directly from FutLight factory, good price with professional service, genuine version, not cheap copycat
MiBoxer PA5 MiLight 5 channels high performance LED amplifier
Product Name: 5-Channel High Performance Amplifier
Model No.: PA5
Work Temperature: -20~60℃
Input Voltage: DC 12/24V
Output Voltage: DC 12/24V
Output Current: 6A/Channel
Total output Maximum current: 15A
Switching Rate: 10Mbps
Connection: Common anode
Product Size: 115*48*27mm
