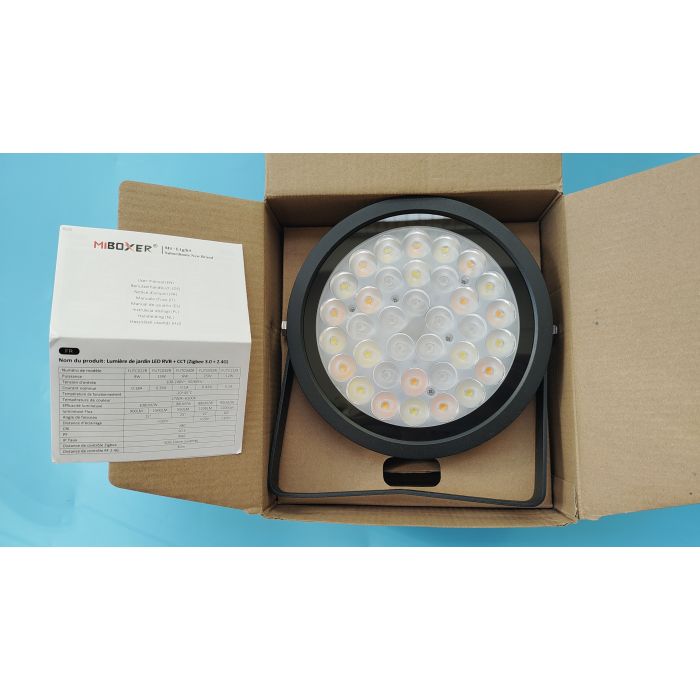

MiBoxer FUTC05ZR MiLight Zigbee 3.0 + 2.4GHz RGB+CCT LED Garden Light
- Buy 100 for £39.28 each and save 4%
MiBoxer FUTC05ZR MiLight Zigbee 3.0 + 2.4GHz 25W RGB+CCT LED Garden Light
Made in Shenzhen of China with reliable quality
we are distributor of MiBoxer&MiLight products, good price
MiBoxer FUTC05ZR MiLight Zigbee 3.0 + 2.4GHz 25W RGB+CCT LED Garden Light
Product follow zigbee 3.0 standard protocol
Zigbee Contrl distance: 50meters (open area)
Compatible with Mi-Light / MiBoxer 2.4GHz series remote
2.4GHz RF Remote Control Distance: 30meters
16 Millions of colors to choose
Brightness and color temperature adjustable
Features
- Zigbee 3.0 standard protocol, support Miboxer/Mi-Light 2.4G controller series
- 16 millions color
- Dim RGB/CCT/Brightness, CCT range 2700K-6500K
- 4096 smooth dimming level, mini brightness 0.1%
- One light max work with 12pcs 2.4G RF remote ( control distance 30meters)
- 18 dynamic mode with jumping and changing gradually ( only work with 2,4G RF remote)
- Auto synchronization: same dynamic mode can synchronized and keep all lights with same mode
- Auto transmitting: transmitting signal to another lights and have long distance for controlling
- Have DND function, usually used in power failure area to save power
- Support “TUYA SMART”APP control（Must connect with zigbee 3.0 gateway)
- Support Alexa, Google Assistant,Yandex Alice, Tmall Genie, Bai Du, Xiao Mi ( must connect with zigbee 3.0 gateway)
- Working with DMX512 ( need DMX512 transmitter)
Parameters
Product Name: 25W RGB+CCT Garden Light
Model No.: FUTC05ZR
Input Voltage: AC100~240V 50/60Hz
Power: 25W
PF: >0.5
CRI: >80
Color temperature: 2700~6500K
Luminous Flux: 2200LM
Luminous efficiency: 88LM/W
Beam Angle: 15°
Protocol: Zigbee 3.0 + 2.4GHz RF
Control Distance: Zigbee: 50M（open area）2.4GHz RF : 30M
IP rate: IP66
Working Temperature: -20~45℃
Emitting Distance: 15 meters
Dimming Grayscale: 4096 Levels
Dimming Range: 0.1%-100%
Dimming Curve: Logarithmic
EMC Standard (EMC): ETSI EN301 489-1 v 2.2.3 (2019-11); ETSI EN 301 489-3 v 2.3.1 (2019-03)
Safety Standard (LVD): EN 62560:2012+A1; 2015+A11:2019
Radio Equipment (RED): ETSI EN 300 440 V2.2.1
Certification: CE, EMC, LVD, RED
Support Tuya smart app control (Zigbee 3.0 gateway is needed)
Support third party voice control (Zigbee 3.0 gateway is needed)
It can enter into Philips Hue, IKEA TRÅDFRI, AMAZON Echo Plus (2nd Gen), Echo (4th Gen), Echo Studio, Echo show (2.Gen) standard zigbee 3.0 gateway
Need DMX512 LED transmitter
Application Diagram
