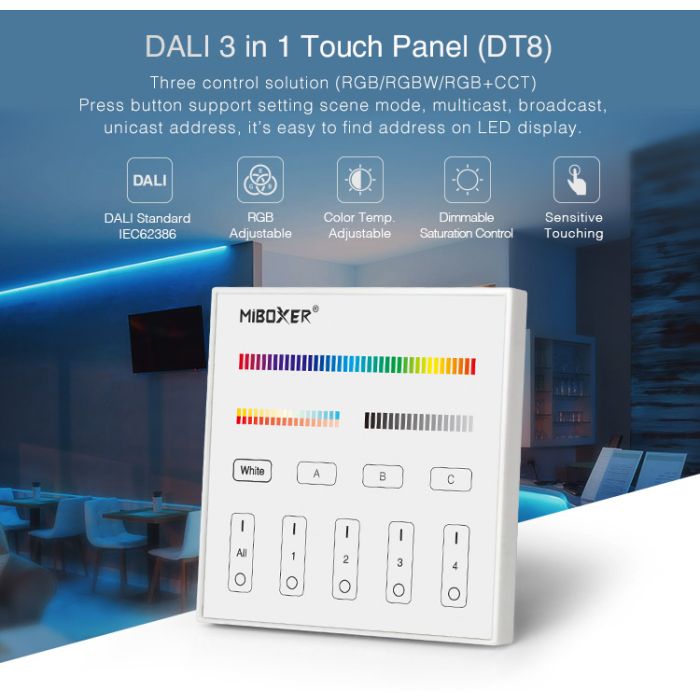

MiBoxer DP3S MiLight DALI 3 in 1 touch panel DT8 type LED controller
- Buy 100 for £12.96 each and save 9%
MiBoxer DP3S MiLight DALI 3 in 1 touch panel DT8 type LED controller
Made in Shenzhen of China with reliable quality, 2 years warranty
Support DT8 type IEC62386 standard DALI protocol, 3 output modes
MiBoxer DP3S MiLight DALI 3 in 1 touch panel DT8 type LED controller
Model No.: DP3S
Power Supply: DALI Power
DALI Bus Standard: IEC62386-102, 207, 209
Output Signal: DALI Signal
Controlling Type: RGB(DT8 type: xy coordinates), RGBW(DT8 type: RGBWAF), RGB+CCT(DT8 type: RGBWAF)
Standby Current: <4mA@16V
Working Temp.: -10~40°C
Support DALI standard protocol IEC62386-102, 207, 209 Support DT8 type Tc, xy coordinates, RGBWAF
Set up following address via press button Unicast address (0-63), multicast address (0-15), broadcast address (255) scene mode (0-15), control type (RGB/RGBW/RGB+CCT)
It can set original DALI scene and support three scene mode to be preserved and selected
Press the button with Sound The sound can be ON/OFF
When touching the button, LED indicating lamp will flash once with different sound(Touch slider with no sound).
High-end tempered glass panel
Tempered glass panel, scratching and crushing resistance
1. Install the bottom case into the wall; Above are the standard bottom cases.
2. Fix the controller base on the bottom case with screw.
3. Clicks into the upper side of glass panel on the controller base, then press the lower side slightly to make it clicks into the controller base.
Installation Overview
Method of dismantlement
Plug into the below bayonet with a screwdriver, and upwarp screwdriver, then you can dismantle the controller.
