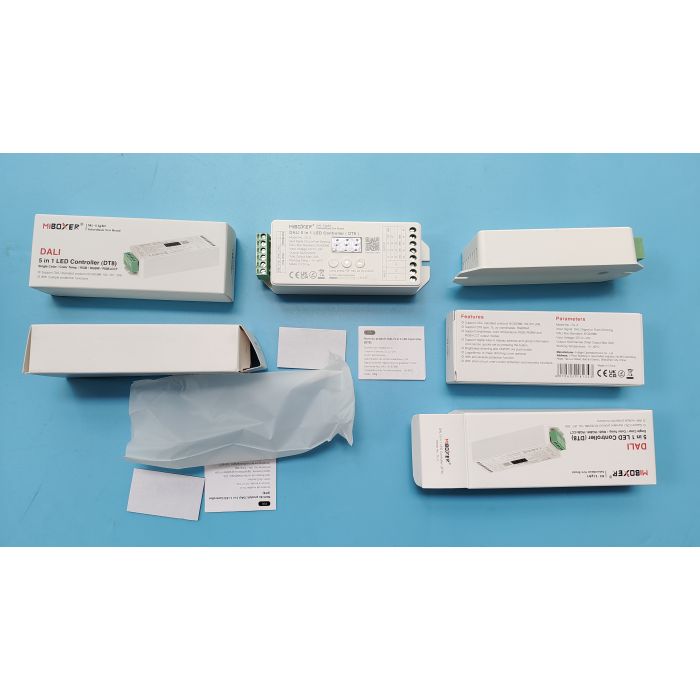

MiBoxer DL-X MiLight DT8 DALI 5 in 1 LED controller

£12.72
In stock
SKU
5714
  • Buy 10 for £11.92 each and save 6%

MiBoxer DL-X MiLight 5 in 1 DALI LED controller

5 output mode: single color, dual white, RGB, RGBW, RGB+CCT

made in Shenzhen of China with reliable quality

we are distributor of MiBoxer&MiLight products, good price

MiBoxer DL-X MiLight 5 in 1 DALI LED controller

Support DALI standard protocol IEC62386-102, 207, 209

Support DT8 type TC, xy coordinates, RGBWAF

16 Millions of colors to choose

Brightness and color temperature adjustable

5 output mode (Single color / Dual white / RGB / RGBW / RGB+CCT)



Product Name: DALI 5 in 1 LED controller (DT8)

Model No.: DL-X

Input Voltage: DC12~24V

Total Output: 20A

Input Signal: DALI Signal or Push Dimming

DALI Bus Standard: IEC62386-102, 207, 209, Support DT8 type TC, xy coordinates, RGBWAF

Working Temperature: -10~40°C

Output connection: Common anode






Comply with DALI standard protocol, Support DT8 type

Support DALI standard protocol IEC62386-102, 207, 209 Support DT8 type TC, xy coordinates, RGBWAF

5 Output Modes

Support monochrome, color temperature, RGB, RGBW, RGB+CCT output modes One control in hand, fully compatible with monochrome color LED lamps

2 Dimming curves optional
Logarithmic dimming
Linear dimming
Digital tube display more intuitive

The output mode, dimming curve, address and group can be quickly set by pressing the button, and displayed on the screen in real time

Multi-protection for your easy use

Automatically detect when power on. Anti-reverse connection protection.  Short-circuit protection. Over current protection and recover function

Support Push dimming

The brightness of the lamps and the ON/OFF of the lamps can be controlled by the Push button

Connection Diagram (Single color output mode)
Connection Diagram (Color temperature output mode)
Connection Diagram (RGB / RGBW / RGB+CCT output mode)
