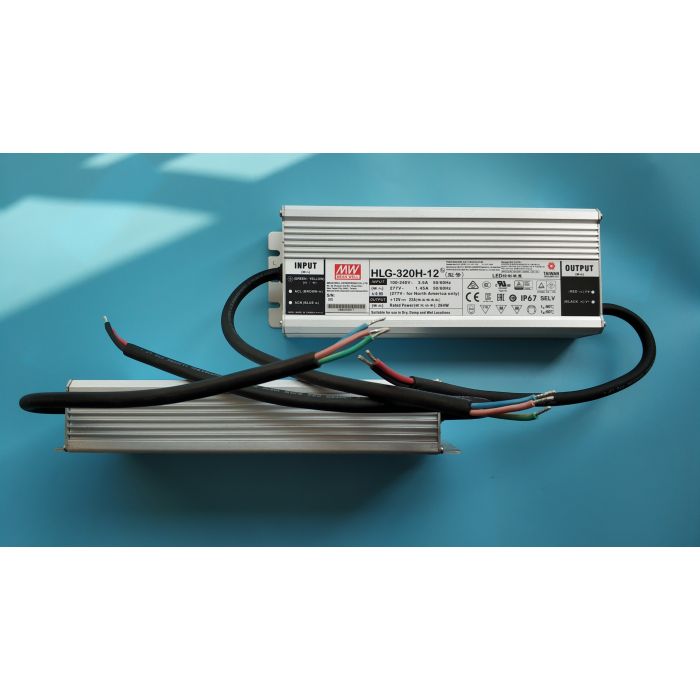

Mean Well HLG-320H waterproof CV+CC power supply LED driver
- Buy 96 for £57.38 each and save 6%
- Buy 1000 for £54.83 each and save 10%
We are distributor of Mean Well LED power supply drivers, genuine version, not cheap copycat
Click here to view the HLG-320H detailed specifications and operating manual
Output type: HLG-320H-12, 10.8~13.5V, 11~22A, default, HLG-320H-15, 13.5~17V, 9.5~19A, HLG-320H-20, 17~22V, 7.5~15A, HLG-320H-24, 21~26V, 6.67~13.34A, HLG-320H-30, 26~32V, 5.35~10.7A, HLG-320H-36, 32~39V, 4.45~8.9A, HLG-320H-42, 38~45V, 3.8~7.65A, HLG-320H-48, 43~52V, 3.35~6.7A, HLG-320H-54, 49~58V, 2.97~5.95A
Universal AC input / Full range (up to 305VAC)
Built-in active PFC function
High efficiency up to 95%
Protection: Short circuit / Over current / Over voltage/ Over temperature
Cooling by free air convection
OCP point adjustable through output cable or internal potentiometer
IP67 / IP65 design for indoor or outdoor installations
Three in one dimming function (1~10VDC or PWM signal or resistance)
Suitable for LED lighting and street lighting applications
Compliance to worldwide safety regulations for lighting
Suitable for dry /damp / wet locations
5 years warranty
old version look
