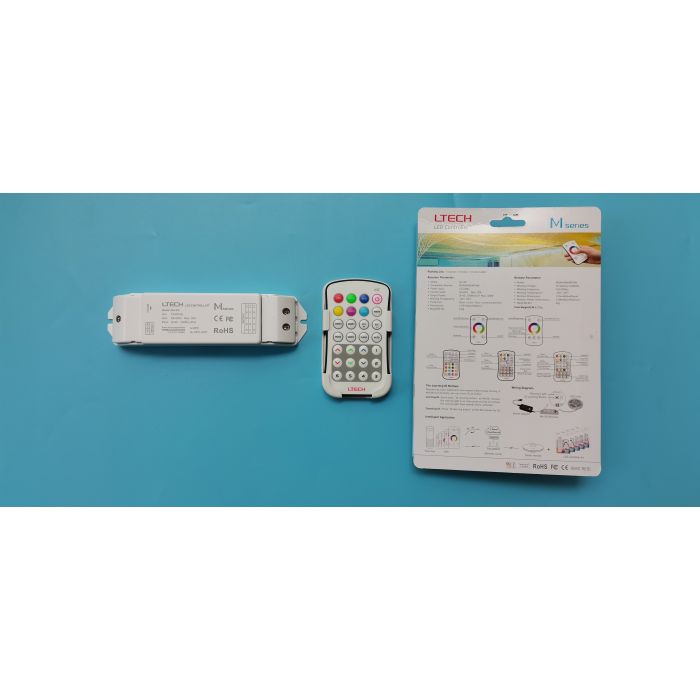

LTech M4-5A wireless receiver + M1 M2 M3 M4 M5 M6 M7 M8 RF remote
- Buy 30 for £14.32 each and save 5%
Extended new series products are based on the Mini series controllers, increase RGBW 4CH control, workable for dimming, Color temperature, RGB and RGBW. And the output power of receiver is higher.
4096 / road grey scale (most of them is 256 in the market), high grayscale performance is more outstanding, the light is more gentle, dynamic changing modes become more rich and colorful. With innovative technology design: One receiver compatible with seven different functions of the remote control (patent technology), that is use one receiver can experience dimming, color temperature and RGB controlled, which can satisfied the different demands of client.
M series with extremely high performance and creative design. They can experience humanized design concept when traders in sales, engineers in installation and the clients in using.
M4-5A RGBW 4 channels receiver can be paired with a remote control. To learn a new ID simply press the learn button (quick press) on the receiver, then any button on a remote. The receiver is then matched to that remote control. To cancel an ID press the learn button for 5 seconds.
The controller can control a total of 240 watts of LED strip running at 12V or 480 Watts of LED strip running at 24V. We recommend that the receiver can control up to 17m of our 12V RGBW LED strip.
Each 5 metres of LED strip must be connected in parallel with the colour controller not in series. If additional LED strip needs to be powered exceeding the above limits the introduction of an RGBW amplifier coupled with a power supply is required. An infinite amount of LED strip can be added to the circuit when using amplifiers.
M1, M2, M3, M4, M5, M6, M7, M8 Remote Control |
|
Working voltage | DC3V(Battery CR2032 ) |
Working Frequency | 433.92 MHz |
Remote Distance | 40-50m |
Working Temp. | -20℃~55℃ |
Dimensions | L104×W60×H9mm |
Weight (N.W.) | 42g |
One set weight (G.W.) | 225g |
Power input | DC5V-DC24V |
Max Current load | 5A × 4CH Max 20A |
Max Output power | 100W/240W/480W(5V/12V/24V) |
Compatible remote | M1/M2/M3/M4//M5/M6/M7/M8 |
Working Temp. | -30℃~55℃ |
Dimensions | L175×W44×H30(mm) |
Weight (N.W.) | 125g |
8 Remote controllers for optional
One receiver compatible 8 different functions remote controllers. Dimmer, color temperature,RGB, RGBW, select what you want. Such as, M3, M4, M6, M7 and M8 control the receiver connected with RGB lights meanwhile, and function is 5 times than general ones.
10 remote control for 1 receiver
1 receiver can be controlled by 10 same or different RF remote at most for dimming.
RF radio frequency (RF) remote control, strong penetration ability of the wall
RF radio frequency (RF) remote control, wireless signal strong penetrating power, even if there is an obstacle in front can be controlled, the partition of remote control; ID code, independent each other.
To simplify
Well-designed remote control operation key, Useful features, rejection of complex instructions,enjoy the colorful world.
Low power consumption
The touch color wheel remote control is used new circuit design which will be lower power consumption, Only use CR2032 button batteries, the first one in the industry, making the remote control more lighter and thinner.
Humanized wall bracket
With this humanized wall bracket which can fix the remote on obviously place of wall,You will not be bothered to find the remote.
Lighter, more transparent and intuitive packing
