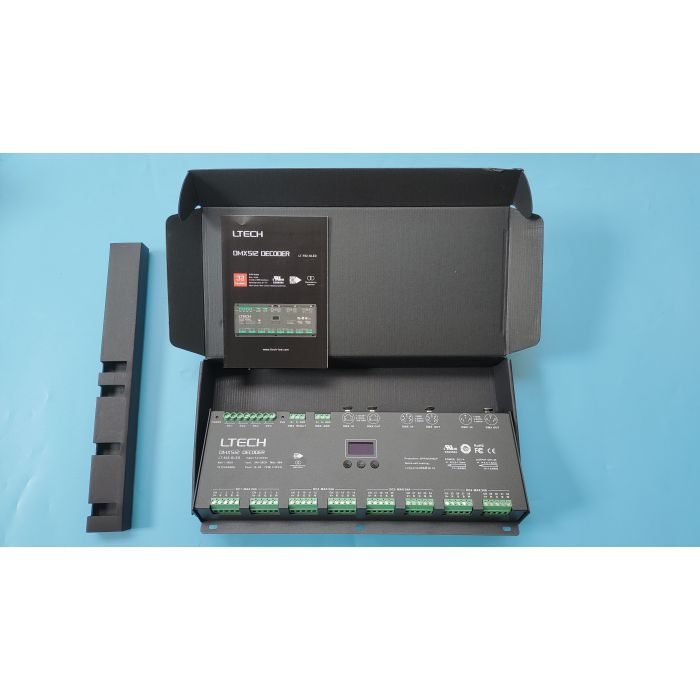

LTech LT-932-OLED 32 channels constant voltage DMX decoder

£123.61
In stock
SKU
2884
  • Buy 32 for £118.83 each and save 4%

LTech LT-932-OLED

Made in Zhuhai of China with 5 years warranty, genuine version, high quality, not cheap copycat

We are the distributor of LTech products, directly from factory, good price

Click here to know more details about LTech LT-932-OLED

LTech LT-932-OLED

features

Designed for Hi-power multiple channels application, 32 channels output, and maximum 3A current per channel, up to 2304W output power

Easy operation with OLED screen and touch buttons.

4 kinds of mode optional: single color, color temperature, RGB and RGBW.

Support 4 kinds of DMX ports with signal isolation function: 3-pin XLR, 5-pinXLR, RJ45 and green terminal (with signal amplifier function).

With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing&setting, DMX address setting, equipment recognition, etc.

With firmware upgrade function.

With short circuit, over current and over-heat protection, as well as warning function when fault.

With power-on state management and fast self-testing function.

16bit (65536 levels) / 8bit (256 levels) grey level optional.

Optional for standard, linear, LOG or custom 0.1-9.9 dimming curve.



Model : LT-932-OLED

Input Signal : DMX512/RDM

Input Voltage : DC 12~24V

Current Load : 3A × 32CH Max 96A

Output Power : (0~36W...72W) × 32CH Max. 2304W

DMX Interface : 3-pin XLR, 5-pin XLR, RJ45, Green terminal

Control Mode : Dimming/CT/RGB/RGBW

Dimming Curve : 0.1~9.9

Grey Level : 8bit (256 levels) / 16bit (65536 levels)

Photoelectric Isolation : Yes

Protection: Short circuit / Over current / Over-heat

Working Temperature: -30°C~65°C

Dimensions: L300×W122×H39mm

Package Size: L313×W127×H41mm

Weight (G.W.) : 1180g
