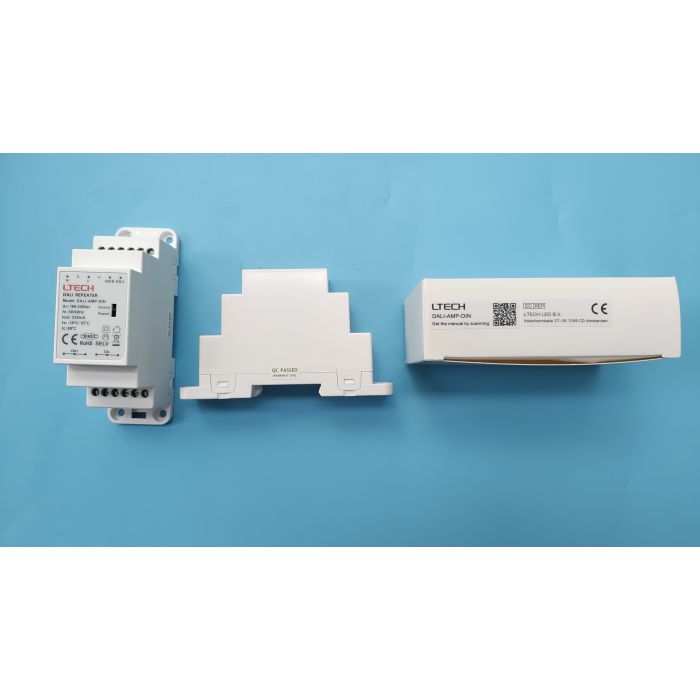

LTech DALI-AMP-DIN DALI Repeater
DALI-AMP-DIN repeater allows to amplify the DALI signal (relay mode) and to extend DALI fixtures (extended mode). You can set the relay or extended mode via DIP switches. The output with load capacity serves as DALI Bus Power Supply, which effectively solves the difficulties of connecting to multiple fixtures and extending the signal transmission distance.
The relay mode is mainly used for amplifying the weak DALI signal and reducing signal distortion in long-ditance transmission due to line loss and environmental interferences.The repeater can extend the maximum DALI line length from 300 meters to 600 meters.
The extended mode enables the output to connect up to 64 fixtures. With a DALI repeater, the output fixtures can be dimmed in sync with buttons and ensure the consistency of lighting changes.
Technical Specs
Input signal : DALI DT6/DT8, Push DIM (Extended mode only)
Input voltage : 100-240Vac
Rated DALI input current : <2mA
Output signal : DALI DT6/DT8
Rated DALI output current : Max. 220mA
Output mode : Extended mode, Relay mode
Protection : Short circuit, Overheat
Working temperature : -20°C~55°C
Mounting : Din rail or Screw
Dimensions(L×W×H) : 112×35×67(mm)
Package size(L×W×H) : 114×37×70(mm)
Weight(G.W.) : 130g
