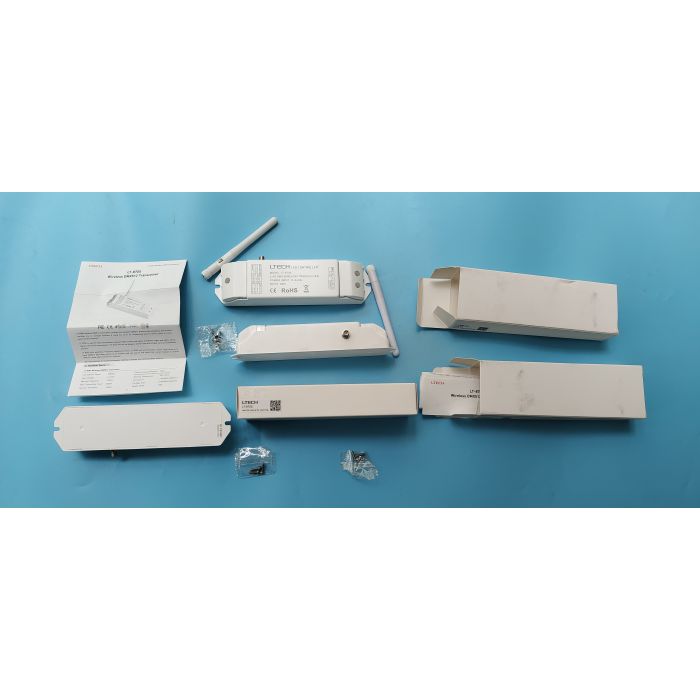

LTech LT-870S 2.4GHz RF wireless DMX512 master controller transceiver
- Buy 6 for £42.47 each and save 4%
LT-870S LTech
Made in Zhuhai of China, reliable quality with 5 years warranty
We are distributor of LTech controllers, genuine version, not copycat
Direct from factory, good price, this transmitter can work with LT-874-5A
LT-870S Wireless DMX512 transceiver transfers the standard DMX512 protocol data by wireless transmission. One send, one receive or multiple receive. (Supporting point to point, point to multi-point), a sending end can configure multiple receiving ends as long as the receiving end and sending end are set as same frequency point.
The product is used for DMX console and lamp. The wireless data transmission between lamps replaces cable transmission which relies on twisted-pair, etc., for a long time. No delay and data is real-time and reliable during data transmission process,
The product adopts 2.4GHZ RF global open ISM frequency channel, which is a low-cost, powerful wireless DMX512 transceiver and widely applied to DMX512 controllers from various manufacturers.
64 channels choices, users can use 64 groups wireless network independently without interference in one place.
Use relay Settings if need further increase the communication distance.
- ● Adopt 2.4GHZ RF global open ISM frequency channel, which is applicable for license free worldwide and efficient GFSK modulation. .
- ● Compatible with Standard International standard DMX512 protocol.
- ● A sending end can configure multiple receiving ends. As long as the receiving end and sending end are set as same frequency point, both sides can communicate normally.
- ● 64 channels choices, users can use 64 groups wireless network independently without interference in one place.
- ● 4 choices of sending end transmitted power level, visual communication distance can reach 350 meters at maximum transmitted power (20dBm),
- ● With self-test inspection mode when need to test the wireless link quality or engineering installation and debugging.
- ● Use relay settings or connect to Booster Antenna to further the communication distance. Relay once or many times to achieve the
- required distance.
- ● Multi-usage, can be set up to receive mode or send mode, use very friendly
| Input voltage | DC5V-DC24V |
| Input/output signal | DMX512 |
| Working frequency channel | 2.4GHz ISM 64 channels |
| Maximum transmitted power | 20dBm |
| Receiver sensitivity | -96dBm |
| Communication distance | 350m (Exist differences in different conditions, such as the weather \ environment etc.) |
| working temperature | -20℃～55℃ |
| Dimension | L175×W44×H30mm |
| Package Size | L178×W48×H33mm |
| Weight (G.W) | 110g |
Conjunction diagram
