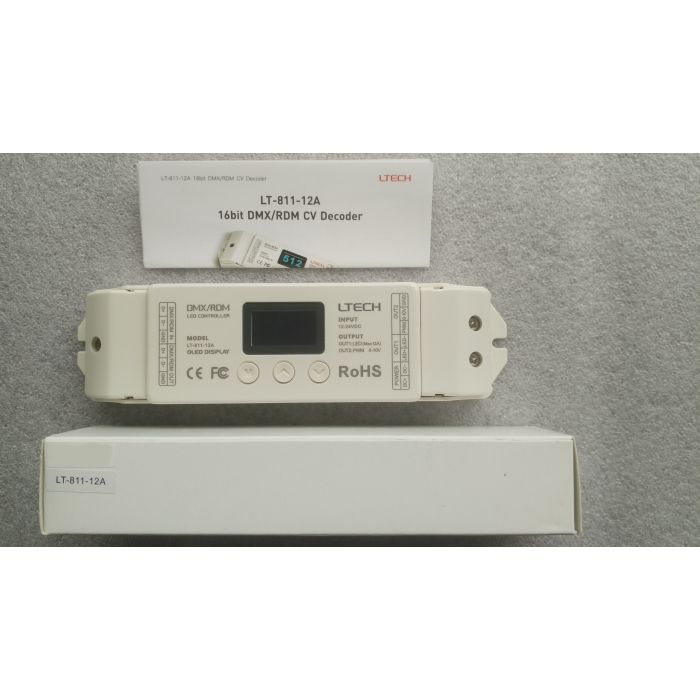

LTech LT-811-12A 1 channel LED DMX-PWM decoder with display
£31.86
In stock
SKU
2144
- Buy 30 for £30.11 each and save 5%
LTech LT-811-12A
Made in Zhuhai of China, reliable quality with 5 years warranty, genuine version, not copycat
Direct from factory, good price, we are the distributor of LTech controllers
OLED real time display
16 bit or 8 bit input
3 dimming curve optional
Frame rate is as high as 850 FPS
Built-in protection circult of resistance to lightning stroke and ESD static electricity
|
LT-811-12A |
|
| Input signal | DMX512 |
| Input power | DC12V～DC24V |
| Max load current | 12A ×1CH + 0-10V ×1CH + 10V PWM ×1CH |
| Max output power | 120W/240W/(12V/24V) |
| Dimming range | 0～100% |
| Working temperature | -30℃～55℃ |
| Dimension | L175×W44×H30(mm) |
| Package Size | L178×W48×H33(mm) |
| Weight (G.W) | 160g |
OLED DMX
The king of DMX Decoder
Excellent performance
The world's first DMX decoder with OLED screen display
16bit/8bit
CH 65536 grayscale/CH
