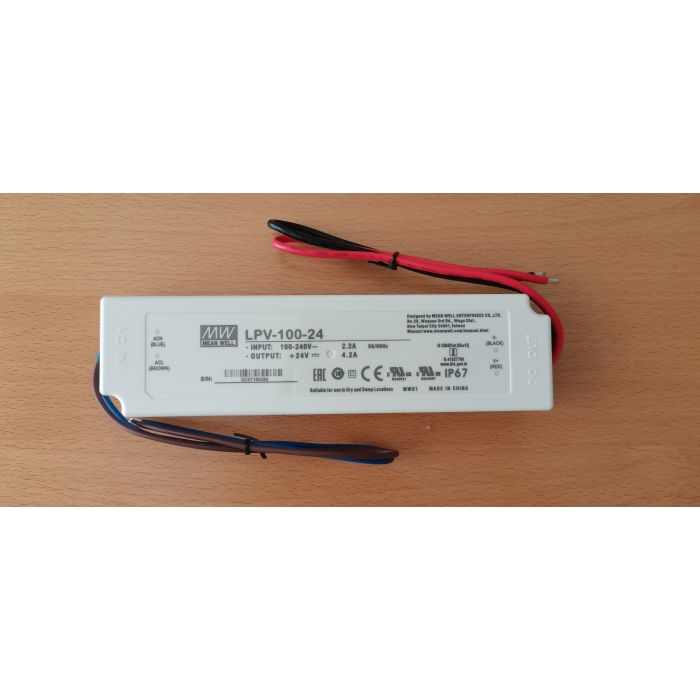

IP67 level Mean Well LPV-100 single output LED power supply driver
- Buy 100 for £14.32 each and save 10%
- Buy 1000 for £13.36 each and save 16%
We are the distributor of Mean Well LPV-100 LED power supply drivers, genuine version, not cheap copycat
Output voltage: DC 5V (LPV-100-5), 12V (LPV-100-12, default), 15V (LPV-100-15), 24V (LPV-100-24), 36V (LPV-100-36), 48V (LPV-100-48)
Constant voltage mode power supply
Universal AC input
Fully encapsulated with IP67 level
Withstand 300VAC surge input for 5 seconds
Short circuit, over current, over voltage protections
Fully isolated plastic case
Cooling by free air convection
Suitable for LED lighting and moving sign applications
High Reliability
Applications
LED lighting
Moving sign applications
Description
LPV-100 Series are a range of Constant Voltage LED Lighting Power Supplies with univeral ac input. These fully enclosed led power supplies are available as 5V, 12V, 15V, 24V, 36V and 48V models, with efficiency up to 88%. Other standard features include short circuit, over load and over voltage protections.
LPV-100 Series Specifications
| Part Number | Voltage (max/rated) | Current (amps) | Power (watts) | R&N (mV) | Efficiency (%) |
|---|---|---|---|---|---|
| LPV-100-5 | 5V | 12A | 60W | 80mV | 80% |
| LPV-100-12 | 12V | 8.5A | 102W | 120mV | 85% |
| LPV-100-15 | 15V | 7A | 100.5W | 120mV | 87% |
| LPV-100-24 | 24V | 4.2A | 101W | 150mV | 88% |
| LPV-100-36 | 36V | 3A | 101W | 150mV | 88% |
| LPV-100-48 | 48V | 2.1A | 101W | 150mV | 89% |
