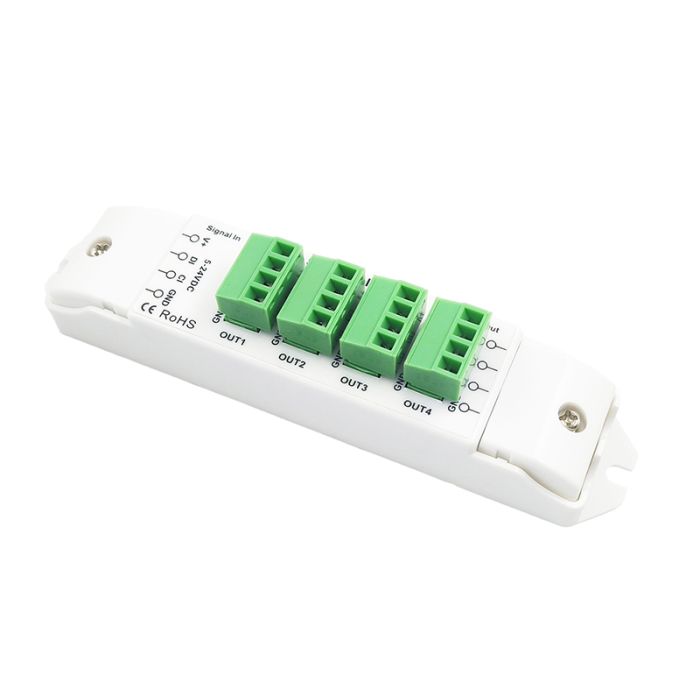

BC-294 BinColor SPI signal amplifier
Made in Zhuhai of China, high quality
We are distributor of BinColor controllers, good price
BC-294 BinColor
The SPI signal amplifier. This signal amplifier is designed for amplifying SPI signal. It solves the problem of insufficient driving capability or short transmission distance of SPI signal. It is compatible with SPI controller designed by different factories, pixel strips with various IC, and SPI signal with single wire or dual wire.
Welcome to use The SPI signal amplifier. This signal amplifier is designed for amplifying SPI signal. It solves the problem of insufficient driving capability or short transmission distance of SPI signal. It is compatible with SPI controller designed by different factories, pixel strips with various IC, and SPI signal with single wire or dual wire.
Basic Features
1. DC 5V-24V input, suitable for LED controller and lamps with different voltages.
2. The input and output of the signal port are protected.
3.1 channel SPI signal input, 4 channel SPI signal amplification output.
4.The amplified signal will be more stable. It can improve the signal driving capability and
extend the signal output distance.
5. You can use multiple units consecutively to amplify the signal.
Specifications
|
Model |
SPI Signal Amplifier |
|
Input Voltage |
5V-24V |
|
Input Signal |
SPI signal |
|
Output Signal |
8-channel (single wire); 4-channel (dual wire) amplifier output |
|
Max Load Current |
10A |
|
Max output power |
50W(5V)/120W(12V)/240W(24V) |
|
Working temperature |
-20°C~55°C |
|
Product Dimension |
L135 × W30 × H30.2 (mm) |
|
Weight |
66g |
