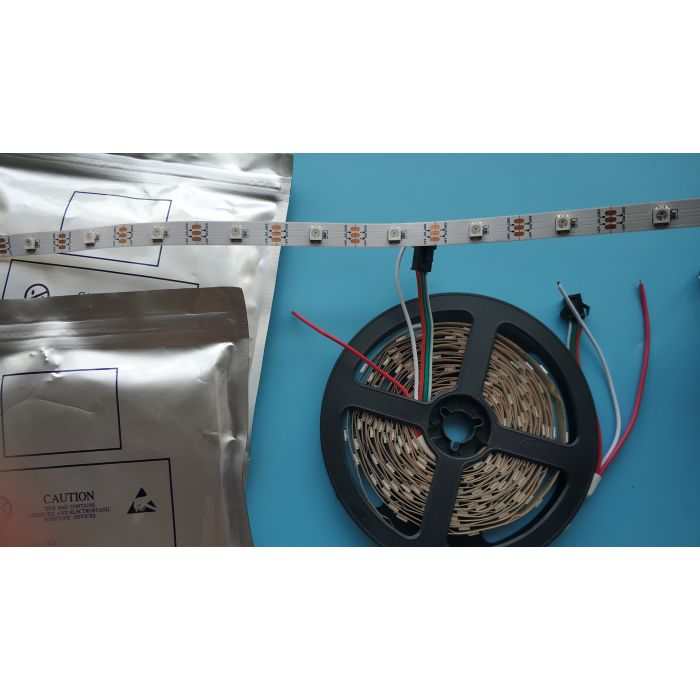

5V 150 LEDs dream color programmable SK6812 RGB 5050 LED light strip
- Buy 100 for £9.97 each and save 16%
- Buy 1000 for £8.73 each and save 27%
Made in Shenzhen of China, reliable quality, direct from factory, good price
Faster data transfer, more stable, better long distance performance, compatible with WS2811 WS2812B, much better than WS2812B
We are LED light factory which can supply customized LED light products, for big quantity products, please contact us
Features
Top SMD internal integrated high quality external control line serial cascade constant current IC. Control circuit and the RGB chip in SMD 5050 components, to form a complete control of pixel, color mixing uniformity and consistency. Built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform distortion will not guarantee a line. The built-in power on reset and reset circuit, the power does not work. Gray level adjusting circuit (256 level gray scales adjustable). Red drive special treatment, color balance. Line data transmission. Plastic forward strengthening technology, the transmission distance between two points over 10M. Data transmission frequency up to 800Kbps, when the refresh rate of 30 frames per second, a cascade of not less than 1024. Built-in powerpolarity protection module, powerpolarity will not damage.
Specifications
Digital programmable IC: SK6812, compatible with WS2811, WS2812B
Light source: SMD 5050 RGB
Working voltage: DC 5V
Size: 5000mm x 10mm x 2mm (length x width x height)
LED quantity: 30 LEDs per meter, 5 meters, total 150 LEDs
Pixel quanity: each LED is a pixel, 30 pixels per meter, 5 meters, total 150 pixels
Power: 7.2W per meter, total 36 watts
Emitting color: BGR (Blue, Green, Red)
Wave length: Red: 620-625nm; Green: 522.5-525nm; Blue: 467.5-470nm
Luminous flux: Red: 700-1000mcd; Green: 1500-2200mcd; Blue: 700-1000mcd
Viewing angle: 120 degrees
PCB color: white or black
Protection rate: IP20 non-waterproof is default, IP67 silicone tube casing waterproof and IP68 waterproof is available
Certifications: CE, RoHS
K-4000C and SK6812 LED strip with power supply installation diagram
