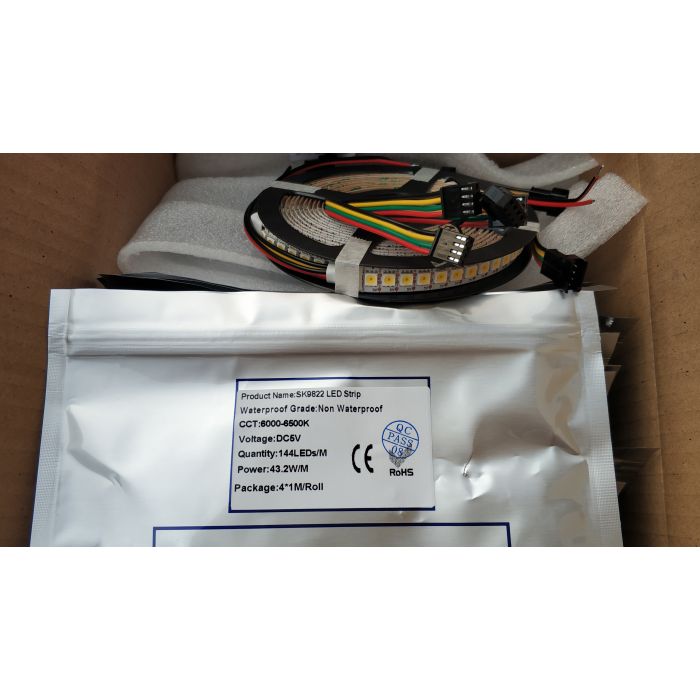

5V 1 meter 144 LEDs programmable SK9822 white light 5050 LED strip
- Buy 100 for £16.71 each and save 9%
- Buy 1000 for £15.11 each and save 17%
Direct from factory, good price
Made in Shenzhen, reliable quality
Dual data clock design, replace of WS2801, excellent performance
We are LED factory which can supply customized LED light products, you can get customised LED light products with special requirements, please contact
Specification
IC type: SK9822 built-in IC
LED type: high brightness white light 5050 SMD LED
LED quantity: 144 LED/m
IC quantity: 144 IC/m
Light color: pure white is default, warm white is optional
3.28 feet / 1 meter per strip
144 pixels per meter
Current: each chip is 20mA, every LED has triple chips, 60mA/LED, 0.3W maximum power per LED
Viewing angle:120 degrees
Gray scale level: 256
PCB: 2.5 ounce thickness board, 2 ounce copper wire inside, white or black PCB
3 cables: black: GND, blue: DATA, yellow: CLK, red: +5V
Dimension: 1000*12*2.5mm (IP20 non-waterproof)
1000*12*3.5mm (IP65 silica gel waterproof)
1000*14.5*4.5mm (IP67/68 waterproof)
Protection grade: IP20 non-waterproof with 3M sticker tape on the back
IP65 glue waterproof
IP67 silicone tube
IP68 silcone gel (or epoxy) inside silicone tube
Features
Each LED individual controlled, every LED cutable.
Operating voltage is DC 5V safe low voltage.
SPI signal control system, DVI video control system, DMX console controllable.
Madrix software available (work with some special controllers).
High intensity video screen, video wall, water running effect, breathing effect, color chasing etc.
